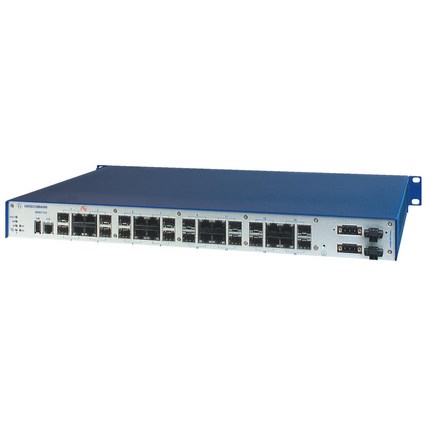

HIRSCHMANN MAR1030-4T BB BB BB BB BB BB BB BBBB BB BB BB S LL HPHHXX.X. MANAGED RACKMOUNT SWITCH 943 940-999-013

Product Code: 943 940-999-013

Explore the Hirschmann MAR1030, a robust managed rackmount switch designed for challenging environments. This switch features 4 gigabit Ethernet ports (10/100/1000TX) and 24 fast Ethernet fiber ports (100BASE-FX, MM-LC FE), ensuring versatile connectivity options. Engineered to operate reliably within a temperature range of 0°C to +60°C, it is equipped with dual power supplies supporting 24V, 36V, or 48V DC inputs via plug-in connectors. As a Layer 2 Professional grade device, the MAR1030 meets rigorous industry standards and holds approvals from cUL508, cUL1604 Class 1 Div2, Germanischer Lloyd, IEC 61850-3, IEEE 1613, and EN 50121. Ideal for network solutions in industrial settings, this switch is part of Hirschmann's trusted lineup of networking equipment.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 100Mb Ports 24
No. of 1GB Ports 4
No. of Ethernet Ports 4
No. of Fiber Ports 24
Rated Maximum Operational Voltage DC (V) 48
Rated Minimum Operational Voltage DC (V) 24
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type 19" Control Cabinet
Series MAR1030
Standards and Approvals IEC 61850-3
