Product Code: M4M 30 PROFIBUS

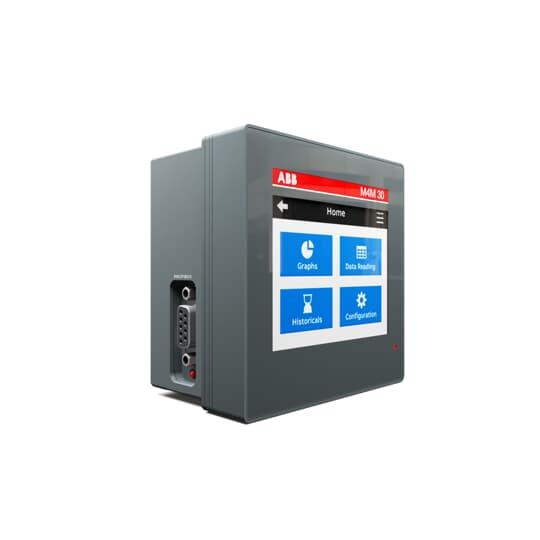

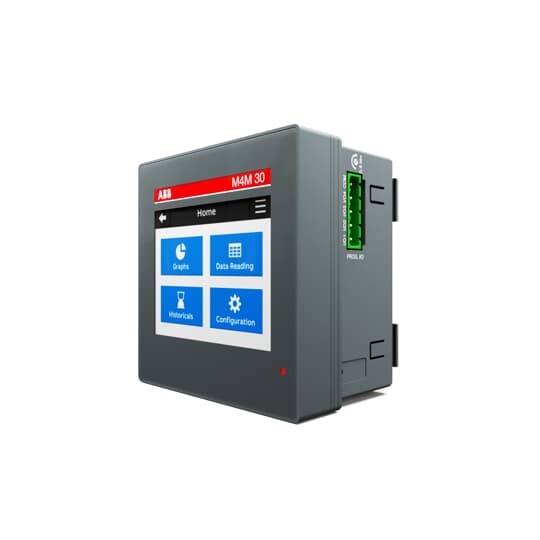

The M4M 30 multifunction meter is a versatile device designed for engineers. It features 4 programmable I/O, bluetooth and Profibus DP-V0 communication capabilities. The meter has an auxiliary supply of 48-240VAC/DC at 50/60Hz. It meets the accuracy class 0.5S to IEC61557-12 standards and has a degree of protection IP54. This meter offers multi-measurement options including currents, voltages, frequency, power factors, and timers. It supports metering for active energy, reactive energy, apparent energy, 4 quadrants energy (Import/Export), and tariffs. Additionally, it provides power quality analysis and energy efficiency evaluations. The M4M 30 features a user-friendly touchscreen colour display and can be easily panel mounted with its dimensions of 96x96mm.

Brand	ABB
Accuracy Class	Active Energy
Frequency Range (Hz)	50 - 60
I/O Option	4 programmable I/O
Meter Type	Transformer connected
Net Weight (g)	360
Net Weight (kg)	0.36
No. of Counter Positions	8
Number of Counter Positions	8
Power Consumption (VA)	10
Pulse Output Rate	1 … 999999
Type of Indicator	Digital
Voltage Range	50 … 400 V
Accuracy	±0.5%
Communication	Profibus DP-V0, Bluetooth
Current Rating (A)	5
Degree of Protection	IP54
Dimensions (mm)	96 X 96 X 77
Display Screen Type	Digital
Mounting Type	Front Panel
No. of Phases	Three-phase
No. of Poles	3P or 4P
Operational Temperature Range (°C)	-25 to +70
Rated Current (A)	5 Maximum 6
Rated Frequency (Hz)	50 / 60
Rated Voltage (V)	3 x 230 (400)
Width in Number of Modular Spacings	5.5
