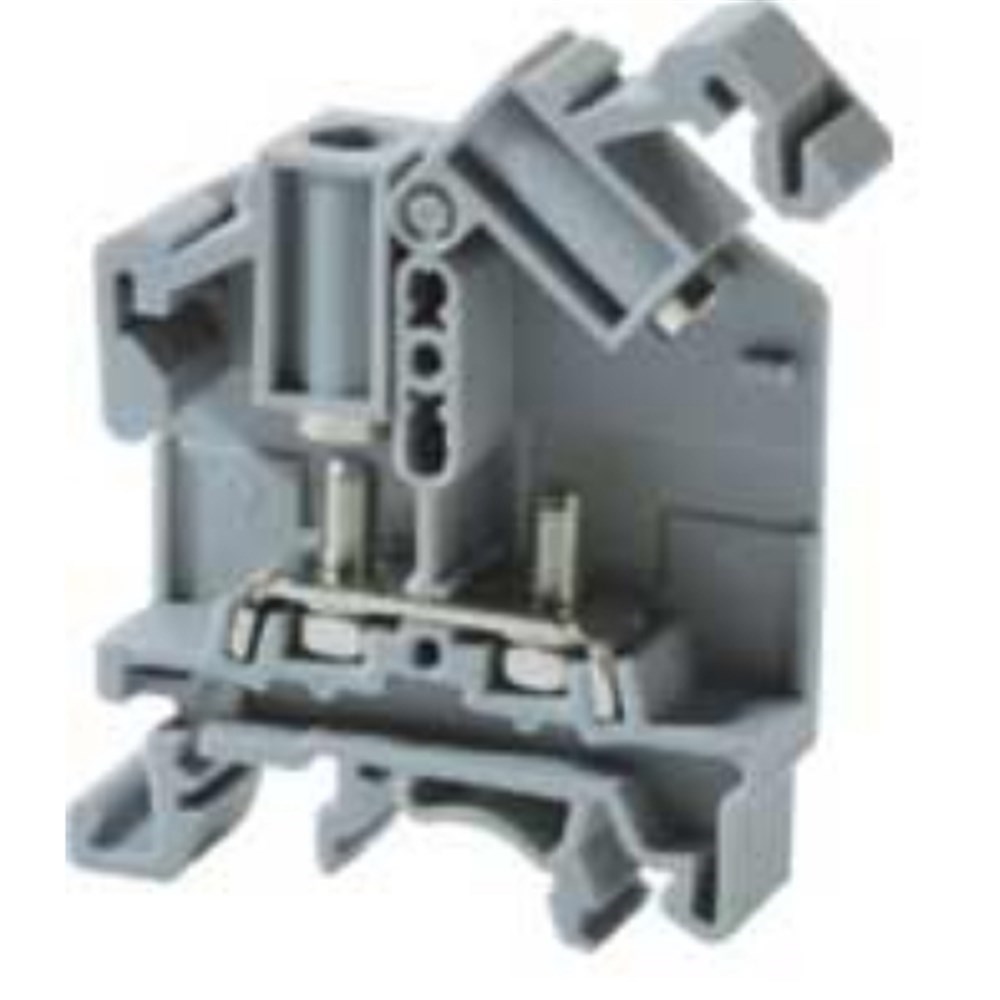

CONNECTWELL STH4 HINGE TYPE STUD TERMINAL BLOCK LUG CONNECTION 1.5- 6mm² 1000V/41A
Zoom
Zoom
Zoom
CONNECTWELL STH4 HINGE TYPE STUD TERMINAL BLOCK LUG CONNECTION 1.5- 6mm² 1000V/41A
Product Code: STH4
The hinge type stud terminal block lug connection is designed for conductor cross sections of 1.5 - 6mm². It has dimensions of 46mm in length, 11mm in width, and 52.2mm in height. The terminal block is coloured grey and has a feed through capacity of 1000V/41A. It can be mounted using an M4 stud size and is compatible with DIN 32, DIN 35, and DIN 35-15 rails.
Technical Specifications
Brand
CONNECTWELL
Colour
Grey
Conductor Cross Section - Stranded (mm²)
1.5 - 6
Dimensions (mm)
46L x 11W x 52.2H
Mounting Type
DIN Rail
Rated Current (A)
41
Rated Voltage (V)
1000
Screw Size
M4
Tightening Torque (Nm)
1.2
Documents
Supplier Datasheet
Datasheet
Product catalogue (Flipbook)
