Industrial Fuse Links

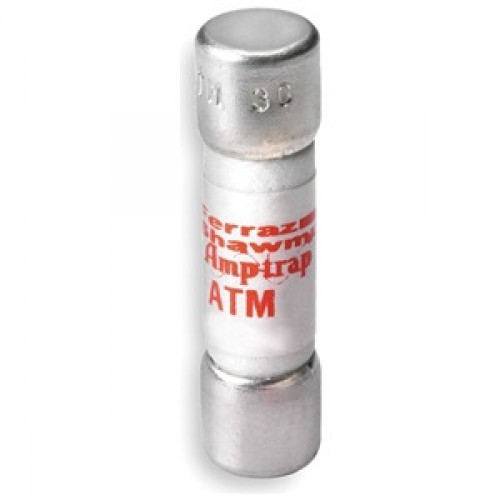

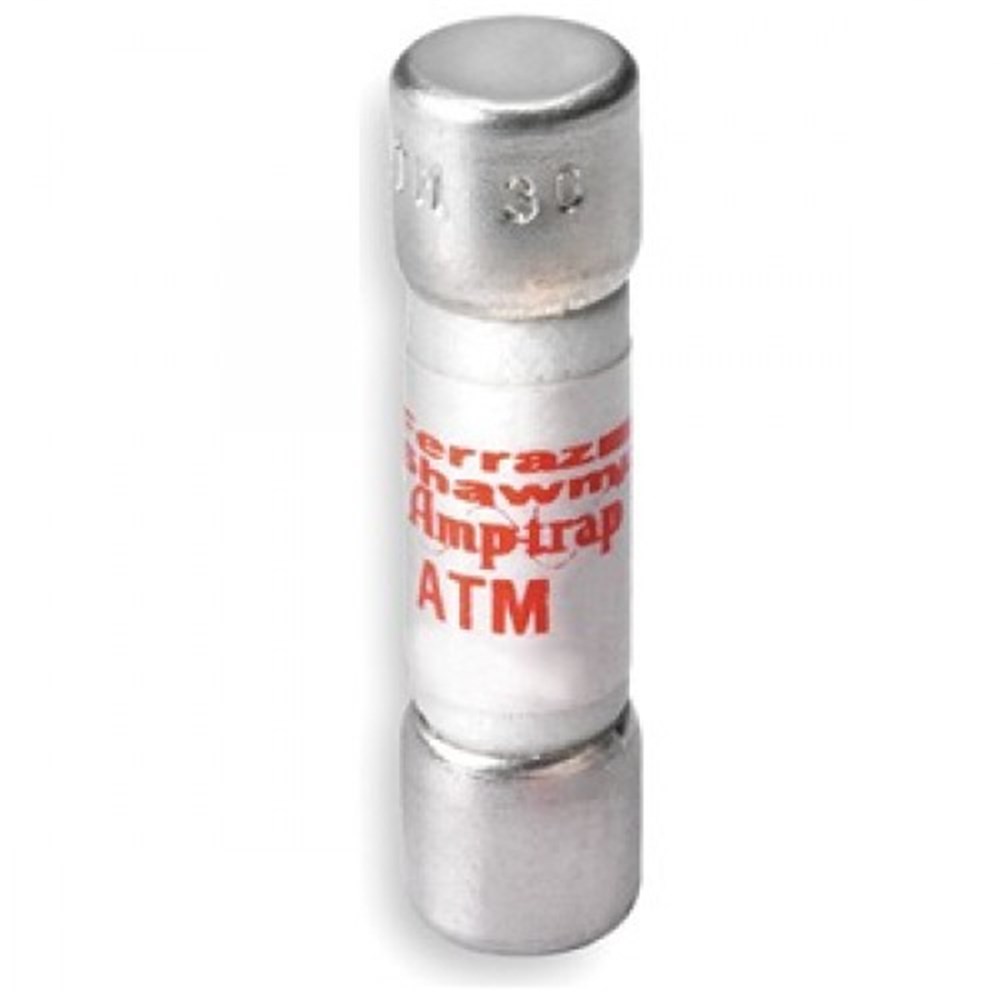

MERSEN ATMR3.5 FUSE LINK 3.5A 600VAC/DC FAST ACTING 10X38mm REJECTION STYLE

Product Code: ATMR3.5

ATMR fast-acting rejection style fuses are ideal for branch circuit protection. They provide economical protection for control circuits and control circuit transformers with short circuit currents exceeding 10kA. These fuses have a voltage rating of 600VAC/DC and a rated current of 3.5A. They can interrupt available short circuit currents up to 200kA/AC and 100kA/DC.

Technical Specifications

Body Style Rejection
Interrupting Rating AC (kA) 200
Interrupting Rating DC (kA) 100
Brand MERSEN
Body Size (mm) 10 x 38
Functionality Fast Acting
Rated Current (A) 3.5
Rated Voltage AC/DC (V) 600

Documents
