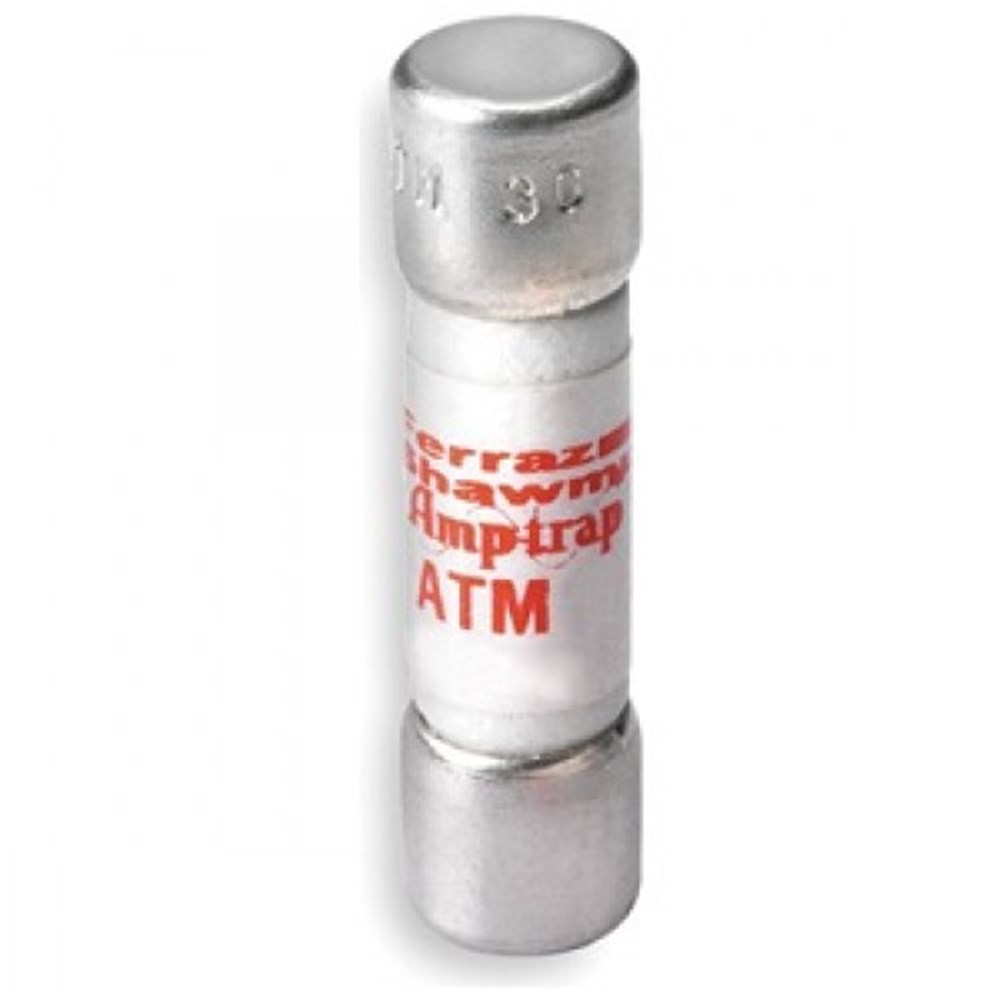

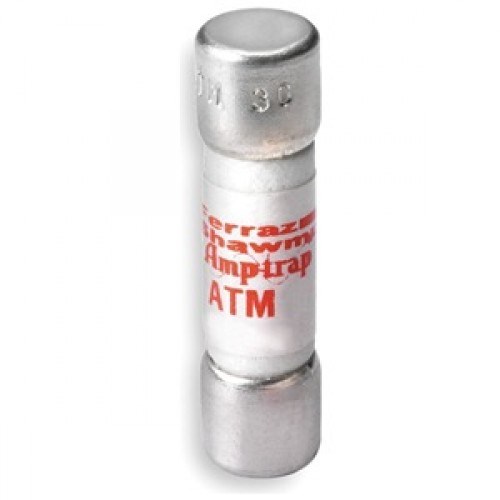

MERSEN ATMR10 FUSE LINK 10A 600VAC/DC FAST ACTING 10X38mm REJECTION STYLE

Product Code: ATMR10

ATMR fast-acting rejection style fuses are ideal for branch circuit protection. They are commonly used to economically protect control circuits and control circuit transformers with short circuit currents exceeding 10kA. These fuses have a voltage rating of 600VAC/DC and a rated current of 10A. They can interrupt available short circuit currents up to 200kA/AC and 100kA/DC.

Technical Specifications

Body Style Rejection
Interrupting Rating AC (kA) 200
Interrupting Rating DC (kA) 100
Brand MERSEN
Body Size (mm) 10 x 38
Functionality Fast Acting
Rated Current (A) 10
Rated Voltage AC/DC (V) 600
