Fuse Fittings

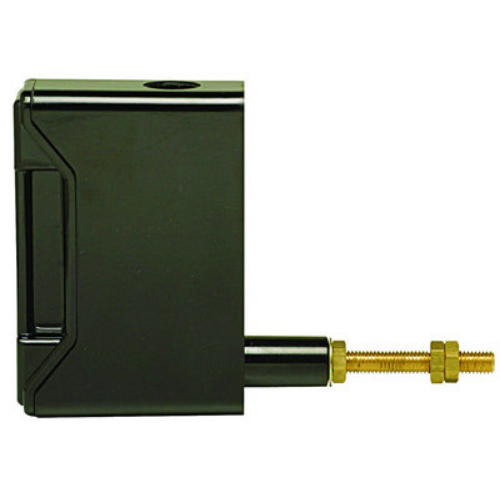

IPD LV FUSE FITTING 20A RS BLACK 1STUD FRONT/BACK CONNECTED USE NIT FUSE LINKS RS20PH

Product Code: RS20PH

RS_PH 1 stud front/back connected LV fuse fittings (black) are a range of IP20 finger-safe fuse holders designed for the protection of utility and industrial installations. Anti-vibration feature to ensure perfect carrier contact alignment & superior electrical contact. Standard BS88-2, AS60269,IEC269-2-1. Rated current and voltage are accordingly 20A , 690VAC

Technical Specifications

Brand IPD
Colour Black
Connection Type Front/Back connected, 1 stud
Degree of Protection IP20
Dimensions (mm) 27Wx79Hx55D
Fixing Centres (mm) 44.5
Maximum Cable Entry (mm²) 10
Mounting Type Screw-On
Pack Quantity 10
Rated Current (A) 20
Rated Voltage AC (V) 690
Standards BS 88-2, AS 60269, IEC 269-2-1
Suitable For NIT
Type Fuse Fitting

Documents
