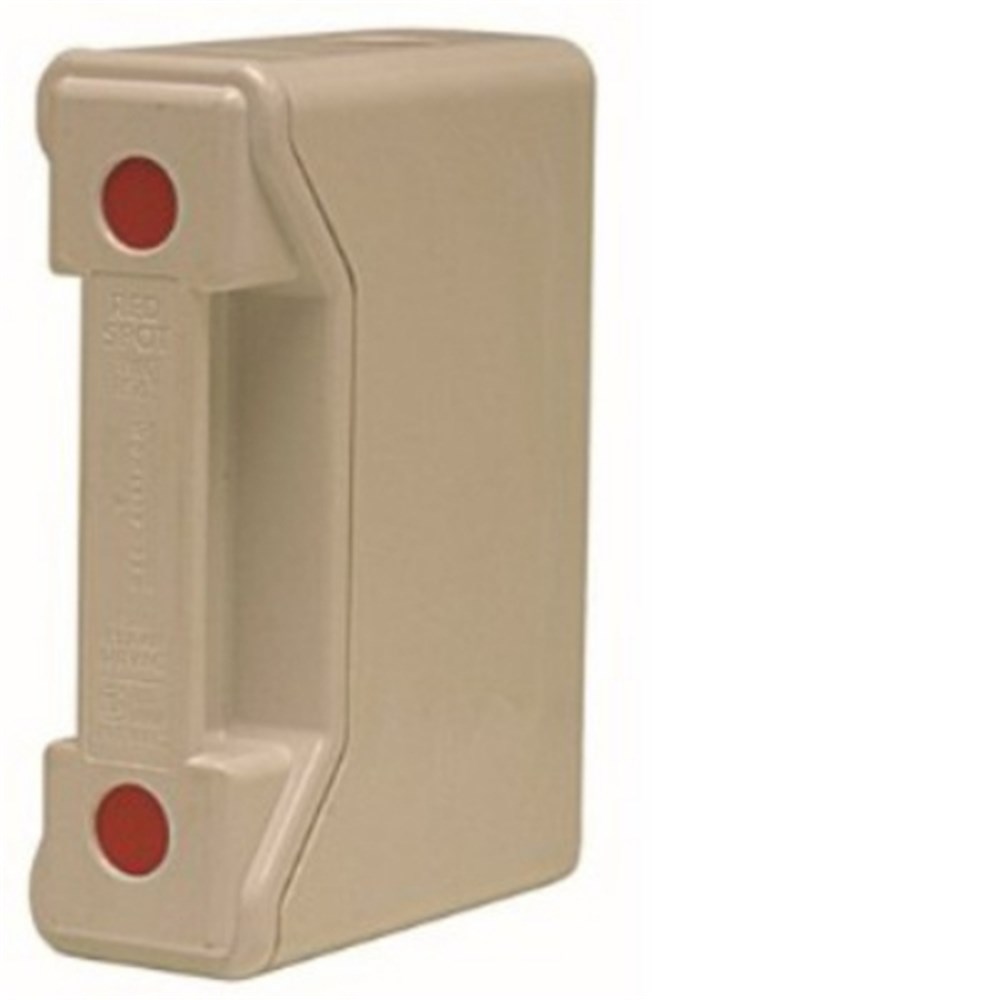

IPD LV FUSE FITTING 100A RS WHITE FRONT CONNECTED USE RS100CLINK, 402140 RS100HWH

Product Code: RS100HWH

The RS_HWH front connected LV fuse fittings (white) are IP20 finger-safe fuse holders specifically designed for protecting utility and industrial installations. These fuse fittings have an anti-vibration feature that ensures perfect carrier contact alignment and superior electrical contact. They comply with the standards BS88-2, AS60269, and IEC269-2-1. The rated current for these fuse fittings is 100A, and the rated voltage is 690VAC.

Technical Specifications

Brand IPD
Colour White
Connection Type Front
Degree of Protection IP20
Dimensions (mm) 51Wx140Hx100D
Fixing Centres (mm) 94
Maximum Cable Entry (mm²) 70
Mounting Type Screw-On
Pack Quantity 5
Rated Current (A) 100
Rated Voltage AC (V) 690
Standards BS 88-2, AS 60269, IEC 269-2-1
Suitable Type of Neutral Link RS100CLINK
Type Fuse Fitting
