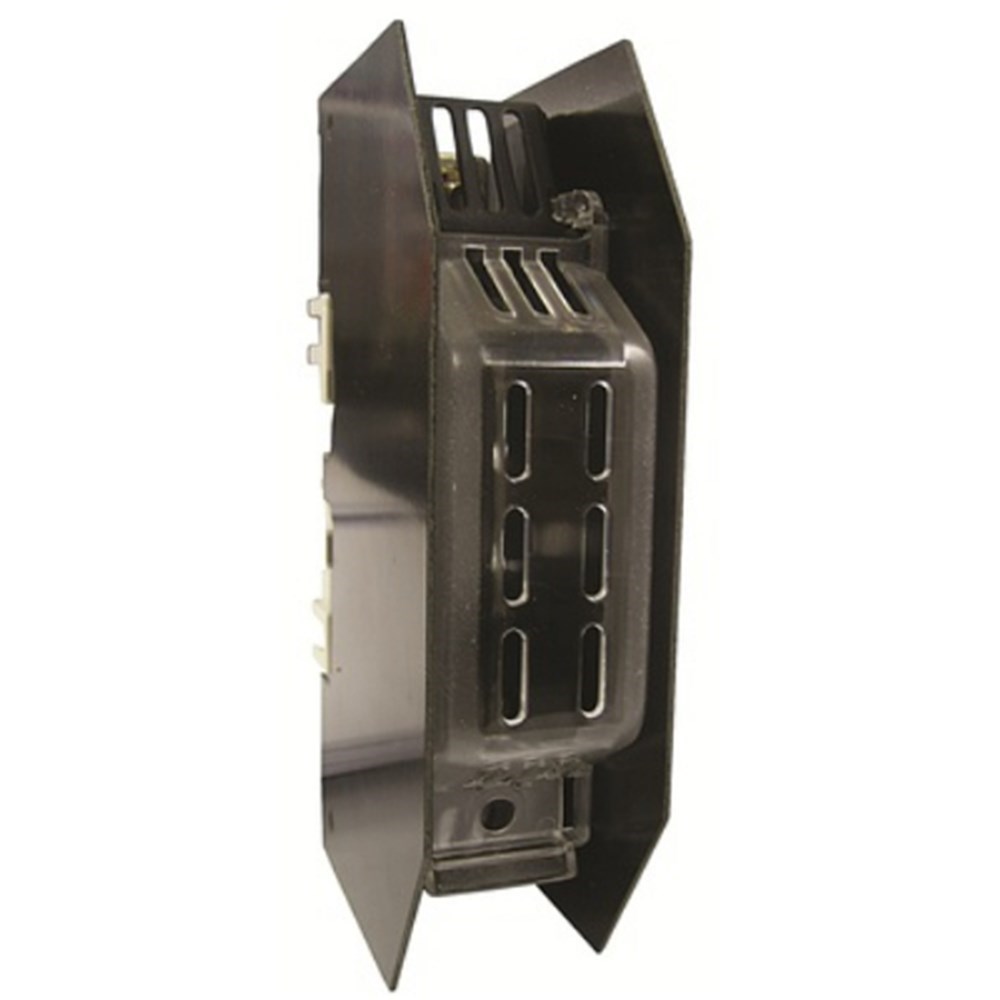

MERSEN K-NH1GSHB FUSE BASE DIN SIZE 1 250A 1000V AC/DC 1P IP20 FULLY SHROUDED KIT

Product Code: K-NH1GSHB

The K-NH1GSHB is a DIN single pole shrouded type base made of self-extinguishing thermoplastic. It has a degree of protection IP20 and features silver plated contacts with high pressure springs for easy fitting with its snap together design. This product meets the standards set by IEC60269 and is specifically designed for NHG1 and M1 fuse types. The DIN fuse size is '1' and it can accommodate cables up to 120 mm² in size. It has a rated current of 250A and can handle voltages of 1000VAC/1000VDC.

Technical Specifications

Fuse Size NH1
Type of Base IP20 Enclosed
Brand MERSEN
Degree of Protection IP20 (Terminal)
Maximum Cable Entry (mm²) 120
No. of Poles 1P
Rated Current (A) 250
Rated Voltage AC/DC (V) 690
Suitable For NHG1, M1
