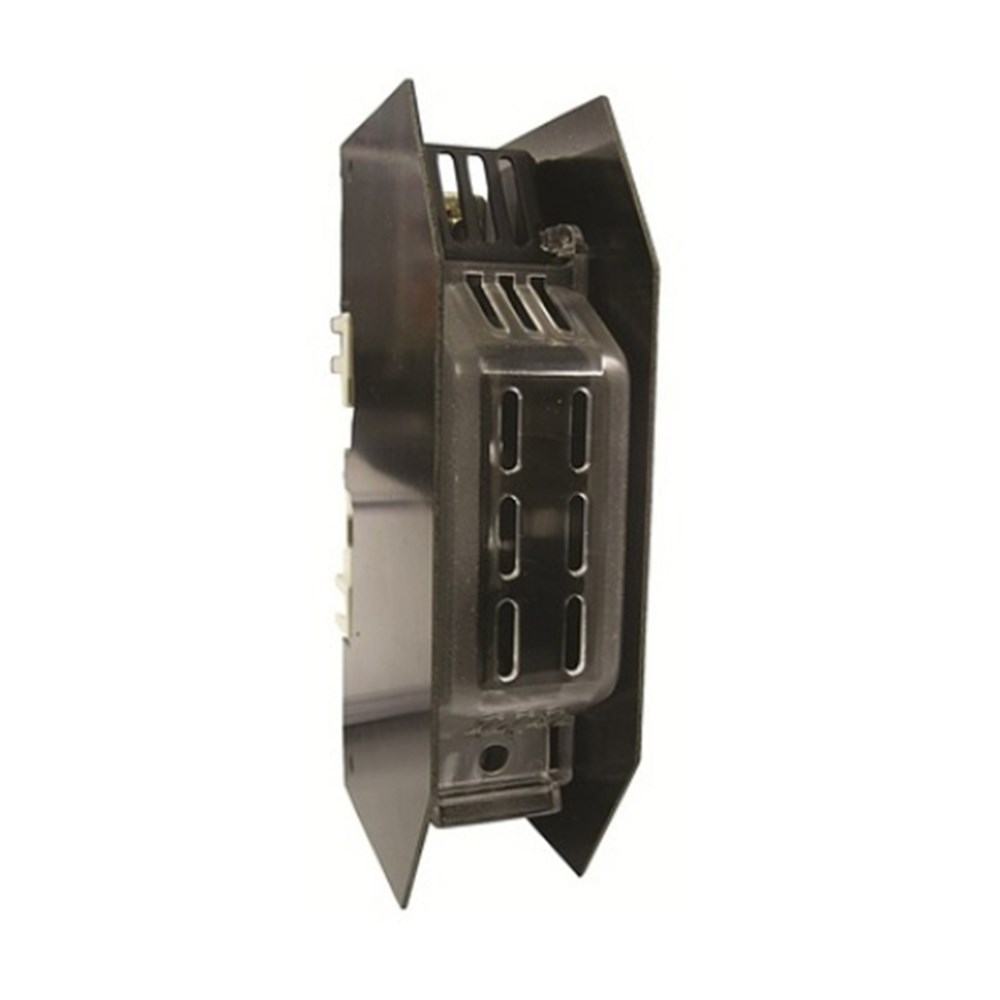

MERSEN K-NH00GSHB FUSE BASE DIN SIZE 00 160A 1000V AC/DC 1P IP20 FULLY SHROUDED KIT

Product Code: K-NH00GSHB

The K-NH00GSHB is a DIN single pole shrouded type base with a self-extinguishing thermoplastic base. It has a degree of protection IP20 and features silver plated contacts with high pressure springs for easy fitting with its snap together design. This product meets the standards set by IEC60269 and is used for NHG00, M000, and M00 fuse types. The DIN fuse size is '00' and it can accommodate cables up to 70 mm². It has a rated current of 160A and can handle voltages of 1000VAC/1000VDC.

Technical Specifications

Fuse Size NH00
Type of Base IP20 Enclosed
Brand MERSEN
Degree of Protection IP20 (Terminal)
Maximum Cable Entry (mm²) 70
No. of Poles 1P
Rated Current (A) 160
Rated Voltage AC/DC (V) 690
Suitable For NHG00, M000, M00
