Current Type	AC
Main Circuit Electrical Connection	Bolt Connection
Brand	ABB
AC Voltage (V)	690
Component Type	Withdrawable
Current Rating (A)	2500
Dimensions (mm)	317W x 425H x 383D
EAN	8015644778446
Iu - Uninterrupted Current Rating (A)	2500
No. of Poles	3
Poles	3P
Rated Current (A)	2500
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Uninterrupted Current - Iu (A)	2500
Rated Voltage (V)	690
Suitable For	E2.2
Terminal Type	Rear Flat Horizontal
Version	Withdrawable

Air Circuit Breakers

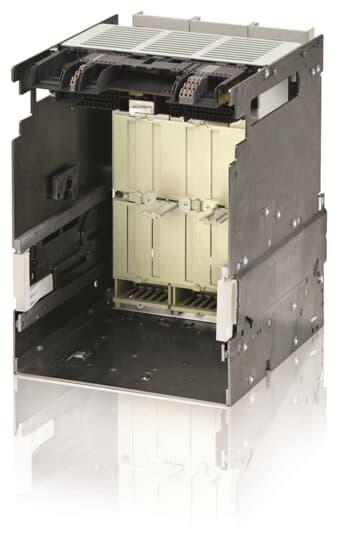

ABB E2.2 W FP IU=2500 3P HR HR 1SDA073911R1
