Brand	DEHN
Connection (Solid/Stranded)	7 x 2.5 - 25mm²
Connection Fl (Solid/Stranded/Cable)	1 x -30 x 4mm
Connection Rd (Solid/Stranded/Cable)	2 x 8 - 10mm or 16 - 95mm²
Accessory Type	Busbar
Contact Material	Brass
Cross Section (mm²)	100
Dimensions (mm)	200W x 66H x 56D
Model	With Covering Cap
Standards and Approvals	EN 62561-1, IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540), IEC/EN 62305-3, DIN VDE 0609
Suitable For	Earthing
Type	Equipotential Bonding
Weight (kg)	0.47

Lightning & Surge Protection

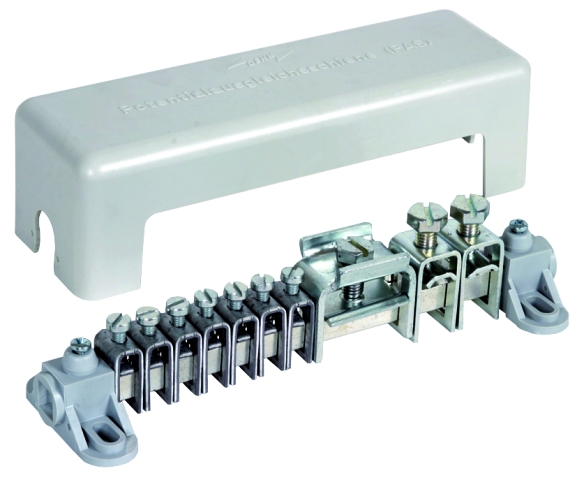

DEHN EQUIPOTENTIAL BONDING BAR WITH 7 X 2.5-25mm² 2X16-95mm² 1 X FL 563010
