Product Code: OKL720N4YF3UU00

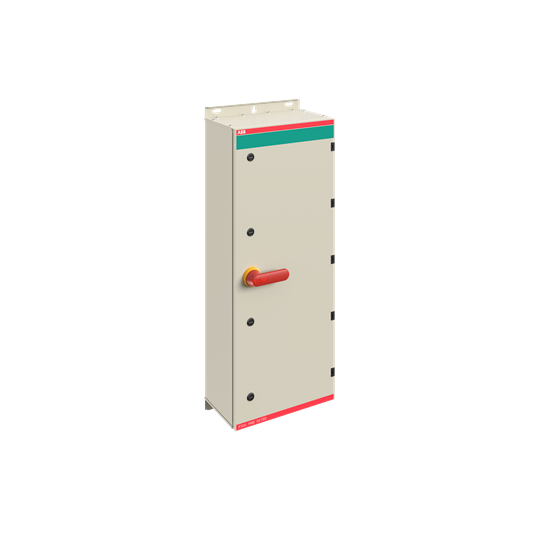

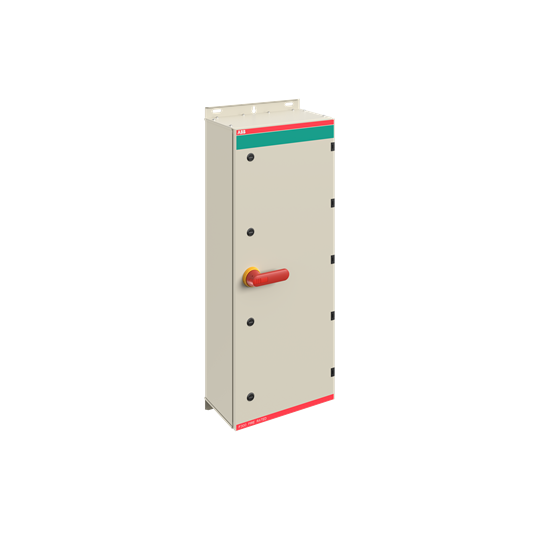

F300 EMC Enclosed Switch Disconnector, 4-p. 415V AC23 720A, 400kW. Steel sheet enclosure. IP65. RedYellow Pistol handle. Interlocked cover. Defeatable interlocking. The ABB fire rated switches withstand fire acc. to standard EN12101-3. ABB can prodvide products for class F200 (120min), F300 (120min) and F400 (120min). Typical applications are high rise buildings, car parks, tunnels or any other place where there are exhaust fans that should stay on during fire. The enclosure is made of rigid aluminium alloy, or painted steel sheet. The F200 and F400 products are also available with auxiliary contacts. The products are EMC approved, when used with EMC cable glands. The handle is padlockable in On and Off position with max. 3 padlocks, and cover is interlocked.

Control Element Colour	Red
Main Circuit Electrical Connection	Bolt Connection
Rated Operational Current AC-22A <415V (A)	720
Rated Operational Current AC-23A <415V (A)	720
Rated Operational Power AC-23A <415V (kW)	400
Brand	ABB
Colour	Grey
Degree of Protection	IP65
Dimensions (mm)	400W x 1000H x 230D
Enclosure Material	Steel Sheet
Maximum Operational Voltage AC (V)	1000
NEMA Degree of Protection	1
No. of Poles	4
Rated Operational Current AC-23A 380-415V (A)	720
Rated Operational Power AC-23A 380-415V (kW)	400
Rated Operational Voltage (V)	1000
Rated Uninterrupted Current - Iu (A)	720
Standards and Approvals	EMC Approved
Suitable For	Distribution Board Installation
Type	Main Switch
