Safety Pushbuttons & Operator Devices

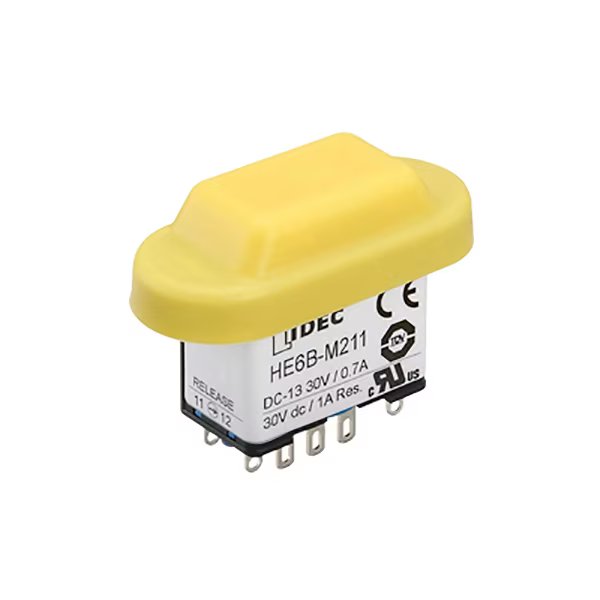

IDEC ENABLING SWITCH DPDT YELLOW ENABLE SWITCH HE6B-M211Y

Product Code: HE6B-M211Y

The IDEC HE6B-M211Y is a robust DPDT yellow enabling switch designed for critical machine control applications. It features a 3-position OFF-ON-OFF mechanism with two contacts, ensuring reliable operation. Additionally, it includes a Return Monitor Switch and a Depress Monitor Switch, each with one contact for enhanced functionality. This switch is engineered to provide precise control in various industrial settings.

Technical Specifications

Resistance to Shock (m/s²) 150
Resistance to Vibrations 5-55Hz
Brand IDEC
Colour Yellow
Contacts 2
Degree of Protection IP65
Minimum Electrical Life 100000
Minimum Mechanical Life Position 1 ? 2 ? 1-1 000 000,Position 1 ? 2 ? 3 ?1- 100 000
Operating Humidity 47 to 85%
Operational Temperature Range (°C) -25 to 60
Rated Insulation Voltage (V) 125
Rated Thermal Current - Ith (A) 3
Weight (g) 14
