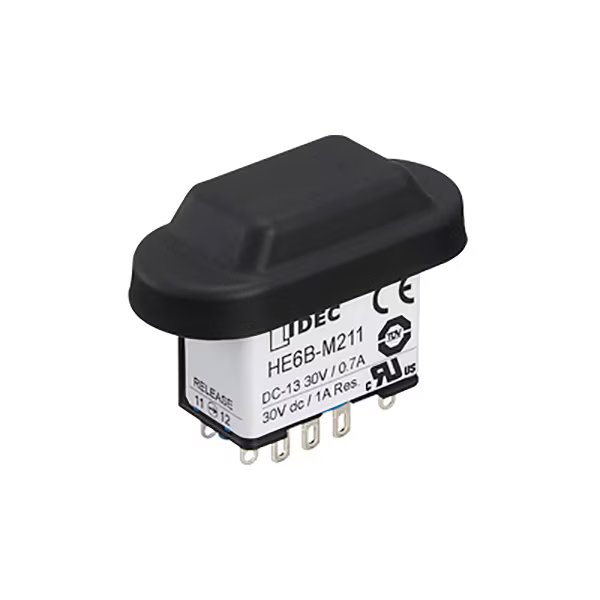

IDEC ENABLING SWITCH DPDT BLACK ENABLE SWITCH HE6B-M211B

Product Code: HE6B-M211B

The IDEC HE6B-M211B is a robust enabling switch featuring a DPDT configuration with a 3-position OFF-ON-OFF operation. It includes two contacts for the main switch positions and one contact each for return and depress monitoring. The unit is equipped with a durable black silicon rubber boot, enhancing its usability in various industrial settings. This switch ensures precise control and safety for machinery operations.

Technical Specifications

Resistance to Shock (m/s²) 150
Resistance to Vibrations 5-55Hz
Brand IDEC
Colour Black
Contacts 2
Degree of Protection IP65
Minimum Electrical Life 100000
Minimum Mechanical Life Position 1 ? 2 ? 1-1 000 000,Position 1 ? 2 ? 3 ?1- 100 000
Operating Humidity 46 to 85%
Operational Temperature Range (°C) -25 to 60
Rated Insulation Voltage (V) 125
Rated Thermal Current - Ith (A) 3
Weight (g) 14
