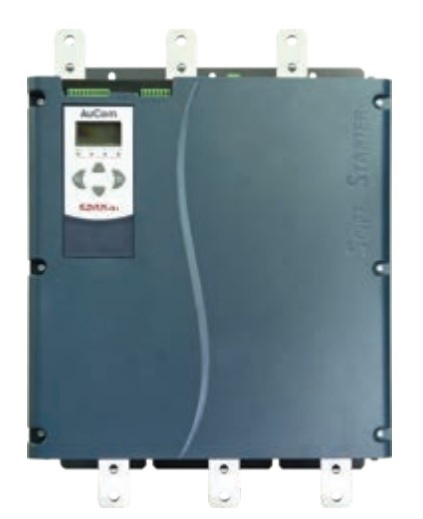

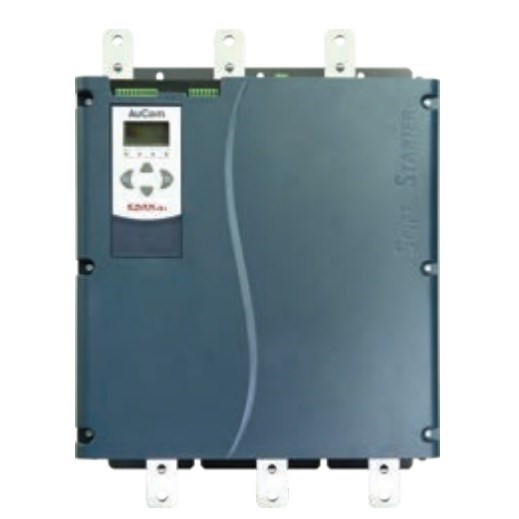

AuCom EMX4i0835BV5C2H SOFT STARTER EMX4i 835A 200-525VAC, CONTROL 24VAC/DC

The EMX4i is an advanced smart soft starter designed for in-line installation. It features an internal bypass and has a frame size of S3 with an IP00 rating. The current ratings vary depending on the load, with light at 835A, medium at 654A, heavy at 535A, and severe at 432A. The supply voltage range is between 200-525V AC, while the control voltage is 24V AC/DC. This soft starter offers a wide range of motor control features including constant current and current ramp start, coast to stop and TVR stop, XLR-8 adaptive control starting/stopping, DC brake, soft brake, kickstart, soft trip, jog (forward and reverse), and inside delta (6 wire) control. It also provides motor protection for motor thermistor, current imbalance, under/over current, phase sequence, phase loss, and power loss. For simplified management, the EMX4i includes emergency run mode and run simulation with real-time performance graphs. It also has SCR fail power through operation and daily on/off scheduling capabilities. To enhance functionality, the EMX4i can support an I/O smart card or a communication expansion card with a remote keypad connector. Alternatively, it can be used with a dedicated keypad connector card. Additionally, it offers a USB port for easy parameter upload and download along with data logging capabilities.
