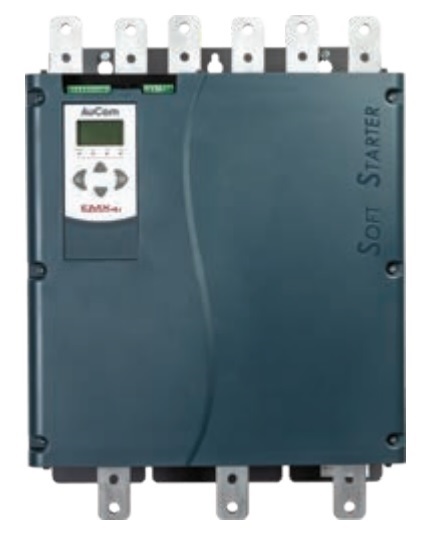

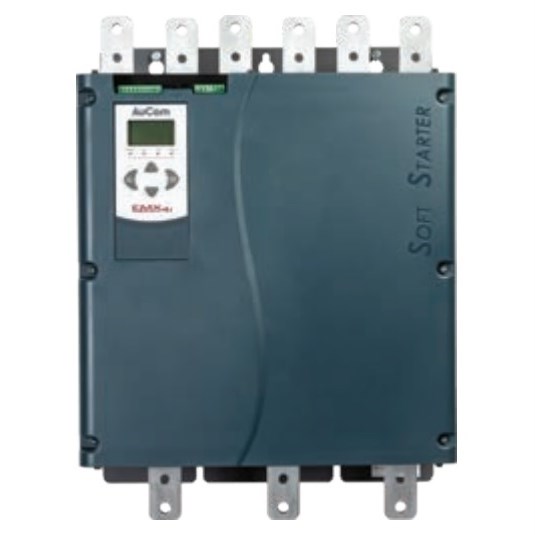

AuCom EMX4i0287EV12C1H SOFT STARTER EMX4i 287A 1000/1200V, CONTROL 110/240VAC

The EMX4i is an advanced smart soft starter designed for use with an external bypass. It has a frame size of S4 and an IP00 rating. The current ratings vary depending on the load, with 287A for light loads, 233A for medium loads, 197A for heavy loads, and 168A for severe loads. The supply voltage range is between 1000V and 1200V, while the control voltage operates at either 110V or 240V AC. This soft starter offers a wide range of motor control features including constant current and current ramp start, coast to stop and TVR stop, XLR-8 adaptive control starting/stopping, DC brake, soft brake, kickstart, soft trip, jog (forward and reverse), and inside delta (6 wire) control. In terms of motor protection, the EMX4i provides protection against motor thermistor faults, current imbalance, under/over current conditions, phase sequence issues, phase loss, and power loss. For simplified management, it includes emergency run mode and run simulation features with real-time performance graphs. Additionally, it has SCR fail power through operation and daily on/off scheduling capabilities. The EMX4i can be enhanced with additional functionality through the use of an I/O smart card or a communication expansion card with a remote keypad connector. Alternatively, it can also support a dedicated keypad connector card for advanced functionality. For easy parameter upload and download, the EMX4i is equipped with a USB port and data logging capabilities.
