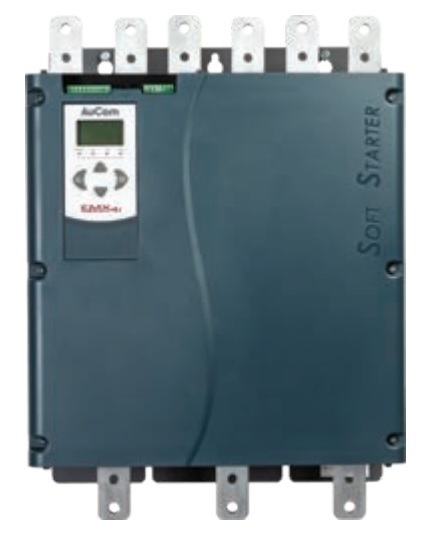

AuCom EMX4i0202EV12C1H SOFT STARTER EMX4i 202A 1000/1200V, CONTROL 110/240VAC

The EMX4i is an advanced smart soft starter designed for use with an external bypass. It has a frame size of S4 and an IP00 rating. The current ratings for the EMX4i are as follows: 202A at light load, 165A at medium load, 140A at heavy load, and 121A at severe load. The supply voltage range for the EMX4i is 1000/1200V, while the control voltage is 110/240V AC. This smart soft starter offers a range of motor control features including constant current and current ramp start, coast to stop and TVR stop, XLR-8 adaptive control starting/stopping, DC brake, soft brake, kickstart, soft trip, jog (forward and reverse) and inside delta (6 wire) control. In terms of motor protection, the EMX4i provides protection for motor thermistor, current imbalance, under/over current, phase sequence, phase loss and power loss. It also includes emergency run mode and run simulation with real-time performance graphs. For simplified management, the EMX4i features SCR fail power through operation and daily on/off scheduling. Additionally, it can support an I/O smart card or communication expansion card with remote keypad connector. Alternatively, it can be used with a dedicated keypad connector card for advanced functionality. The EMX4i also includes a USB port and data logging capabilities for easy parameter upload and download.
