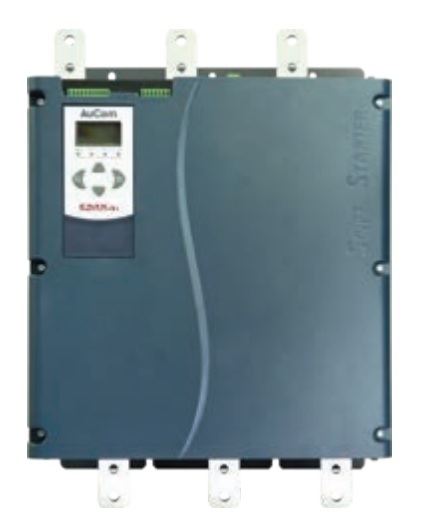

AuCom EMX4i1250BV5C2H SOFT STARTER EMX4i 1250A 200-525VAC, CONTROL 24VAC/DC

The EMX4i is an advanced smart soft starter designed for in-line installation. It features an internal bypass and has a frame size of S3 with an IP00 rating. The current ratings for this soft starter are 1250A for light duty, 1250A for medium duty, 1155A for heavy duty, and 930A for severe duty. The supply voltage range for the EMX4i is 200-525V AC, while the control voltage is 24V AC/DC. This soft starter offers a wide range of motor control features including constant current and current ramp start, coast to stop and TVR stop, XLR-8 adaptive control starting/stopping, DC brake, soft brake, kickstart, soft trip, jog (forward and reverse), and inside delta (6 wire) control. In terms of motor protection, the EMX4i provides protection against motor thermistor faults, current imbalance, under/over current conditions, phase sequence issues, phase loss, and power loss. It also includes emergency run mode and run simulation with real-time performance graphs. For simplified management, the EMX4i offers SCR fail power through operation and daily on/off scheduling. Additionally, it can support an I/O smart card or communication expansion card with a remote keypad connector. Alternatively, it can be used with a dedicated keypad connector card for advanced functionality. The soft starter also includes a USB port and data logging feature for easy parameter upload and download.
