Frame Size	S1
Rated Control Voltage	24 V AC/DC
Rated Supply Voltage (V)	Three Phase 200 - 525 V AC
Brand	AuCom
Application	Start Pumping Smart. Banishing Water Hammer. Conveyor Control. Spray Irrigation.
Degree of Protection	IP20
Dimensions (mm)	152W x 336H x 231D
Operational Temperature Range (°C)	-10 to +60
Rated Control Supply Voltage AC/DC (V)	24
Rated Current - Heavy Duty (A)	16
Rated Current - Light Duty (A)	24
Rated Current - Medium Duty (A)	20
Rated Current - Severe Duty (A)	12
Rated Supply Voltage AC (V)	200 - 525
Size of Frame	S1

Soft Starters

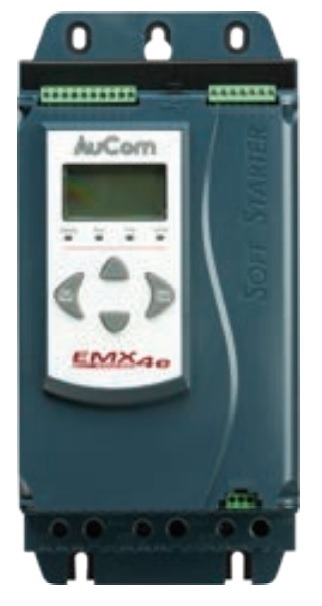

AuCom EMX4E SS 24A LD3W 525VAC 24VAC/DC CONTROL C/W BYPASS EMX4E-0024B-V5-C2-H
