Brand	DEHN
Clamping Range (mm)	89
Clamping Range Rd/Rd (mm)	89
Class (Lightning Current Carrying Capability) (kA)	100
Conductor Diameter (mm)	89
No. of Conductors	1
Surface Protection	Untreated
Dimensions (mm)	182.5W x 40D
Material	Stainless Steel 304 (V2A)
Reference No.	410399
Screw Size	M10 x 25mm
Standards and Approvals	EN 62561-1, IEC 62305-3
Suitable For	Earthing
Type	Equipotential Bonding
Weight (kg)	0.36

Lightning & Surge Protection

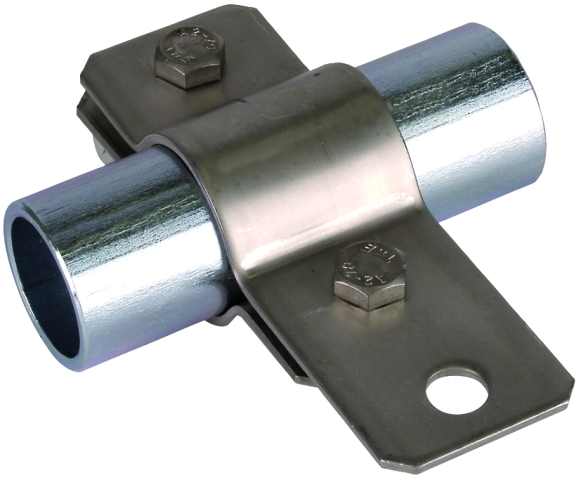

DEHN EARTHING PIPE CLAMP D 88.9mm SWITH HOLE D 11mm 410399
