Brand	ABB
Design of Control Element	Push Button
Earth Fault Protection	Yes
Main Circuit Electrical Connection	Connection at Separate Chassis Part
Main Current Circuit Connection Position	Connection at Separate Chassis Part
No. of Auxiliary Change-over Contacts	4
Overload Release Current Setting (A)	320
Rated Instantaneous Short-Circuit Current - Ii (A)	1200
AC Voltage (V)	690
Breaking Capacity (kA)	100 @415V AC
Breaking Capacity 400V AC - Icu (kA)	100
Breaking Capacity 415V AC - Icu (kA)	100
Component Type	Withdrawable
Current Rating (A)	800
Degree of Protection	IP30
EAN	8015644767464
Frame	E2.2
G (0.1 to 1 x In) - I4 (A)	80 - 800
I (1.5 to 15 x In) - I3 (A)	1200 - 12000
Icw (kA/1s) - Short-time Withstand Current Rating	85
Indication	Switched-off Indicator
Iu - Uninterrupted Current Rating (A)	800
L (0.4 to 1 x In) - I1 (A)	320 - 800
No. of Poles	4
Poles	4P
Power Loss (W)	72
Rated Current (A)	800
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	85
Rated Uninterrupted Current - Iu (A)	800
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	480 - 8000
Size of Frame	E2.2
Standards and Approvals	IEC
Trip Unit	EKIP Touch LSIG
Trip Unit - Electronic	EKIP Touch LSIG
Version	Withdrawable

Air Circuit Breakers

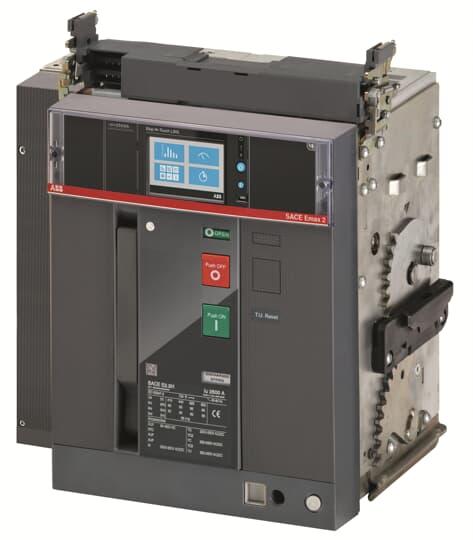

ABB E2.2H 800 EKIP TOUCH LSIG 4P WMP 1SDA072896R1
