Brand	ABB
Design of Control Element	Push Button
Earth Fault Protection	Yes
Main Circuit Electrical Connection	Connection at Separate Chassis Part
Main Current Circuit Connection Position	Connection at Separate Chassis Part
No. of Auxiliary Change-over Contacts	4
Overload Release Current Setting (A)	500
Rated Instantaneous Short-Circuit Current - Ii (A)	1875
AC Voltage (V)	690
Breaking Capacity (kA)	100 @415V AC
Breaking Capacity 400V AC - Icu (kA)	100
Breaking Capacity 415V AC - Icu (kA)	100
Component Type	Withdrawable
Current Rating (A)	1250
Degree of Protection	IP30
EAN	8015644768065
Frame	E2.2
G (0.1 to 1 x In) - I4 (A)	125 - 1250
I (1.5 to 15 x In) - I3 (A)	1875 - 18750
Icw (kA/1s) - Short-time Withstand Current Rating	85
Indication	Switched-off Indicator
Iu - Uninterrupted Current Rating (A)	1250
L (0.4 to 1 x In) - I1 (A)	500 - 1250
No. of Poles	4
Poles	4P
Power Loss (W)	176
Rated Current (A)	1250
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	85
Rated Uninterrupted Current - Iu (A)	1250
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	750 - 12500
Size of Frame	E2.2
Standards and Approvals	IEC
Trip Unit	EKIP Touch LSIG
Trip Unit - Electronic	EKIP Touch LSIG
Version	Withdrawable

Air Circuit Breakers

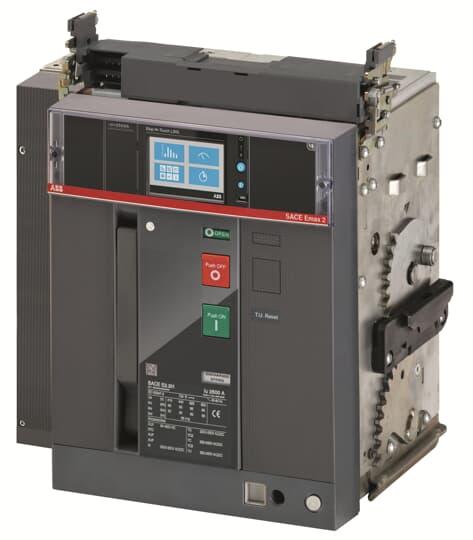

ABB E2.2H 1250 EKIP TOUCH LSIG 4P WMP 1SDA072956R1
