Design of Control Element	Push Button
Interlockable	Yes
Main Circuit Electrical Connection	Bolt Connection
Brand	ABB
AC Voltage (V)	690
Breaking Capacity (kA)	66 @415V AC
Breaking Capacity 415V AC - Icu (kA)	66
Component Type	Fixed
Current Rating (A)	1000
Degree of Protection	IP30
Dimensions (mm)	210W x 296H x 183D
EAN	8015644772475
Frame	E1.2
Icw (kA/1s) - Short-time Withstand Current Rating	50
Iu - Uninterrupted Current Rating (A)	1000
Maximum Operational Voltage AC (V)	690
No. of Poles	3
Poles	3P
Power Loss (W)	78
Rated Current (A)	1000
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Current AC-21A 415V (A)	1000
Rated Operational Current AC-23A 380-415V (A)	1000
Rated Operational Voltage AC (V)	690
Rated Short-Time Withstand Current - Icw (kA)	50
Rated Short-time Withstand Current - Icw (kA/1s)	50
Rated Uninterrupted Current - Iu (A)	1000
Size of Frame	E1.2
Standards and Approvals	IEC
Suitable For	Distribution Board Installation
Terminal Type	Front
Type	Main Switch
Version	Fixed

Air Circuit Breakers

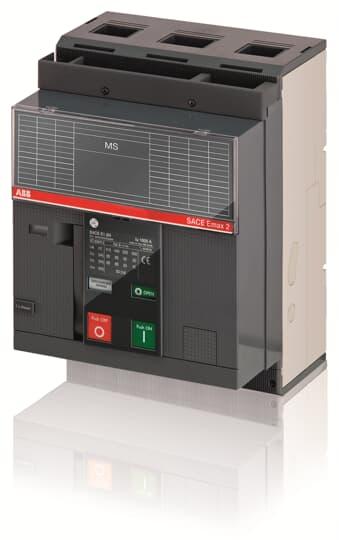

ABB E1.2N/MS 1000 3P F F 1SDA073397R1
