Brand	ABB
Design of Control Element	Push Button
Earth Fault Protection	Yes
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Back Side
No. of Auxiliary Change-over Contacts	4
Overload Release Current Setting (A)	640
Rated Instantaneous Short-Circuit Current - Ii (A)	2400
AC Voltage (V)	690
Breaking Capacity (kA)	66 @415V AC
Breaking Capacity 400V AC - Icu (kA)	66
Breaking Capacity 415V AC - Icu (kA)	66
Component Type	Fixed
Current Rating (A)	1600
Degree of Protection	IP30
EAN	8015644753665
Frame	E1.2
G (0.1 to 1 x In) - I4 (A)	160 - 1600
I (1.5 to 15 x In) - I3 (A)	2400 - 24000
Icw (kA/1s) - Short-time Withstand Current Rating	50
Indication	Switched-off Indicator
Iu - Uninterrupted Current Rating (A)	1600
L (0.4 to 1 x In) - I1 (A)	640 - 1600
No. of Poles	4
Poles	4P
Power Loss (W)	201
Rated Current (A)	1600
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	50
Rated Uninterrupted Current - Iu (A)	1600
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	960 - 16000
Size of Frame	E1.2
Standards and Approvals	IEC
Terminal Type	Front
Trip Unit	EKIP Touch LSIG
Trip Unit - Electronic	EKIP Touch LSIG
Version	Fixed

Air Circuit Breakers

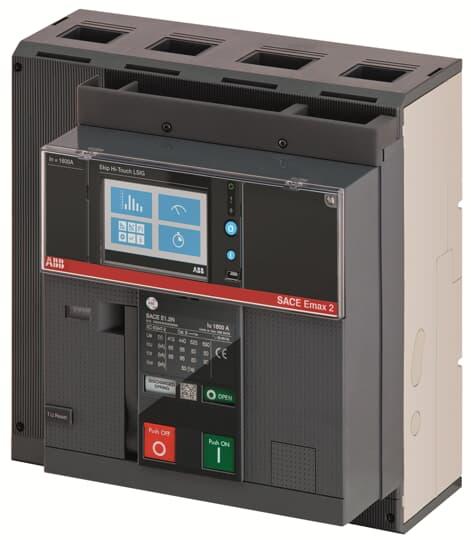

ABB E1.2N 1600 EKIP TOUCH LSIG 4P F F 1SDA071516R1
