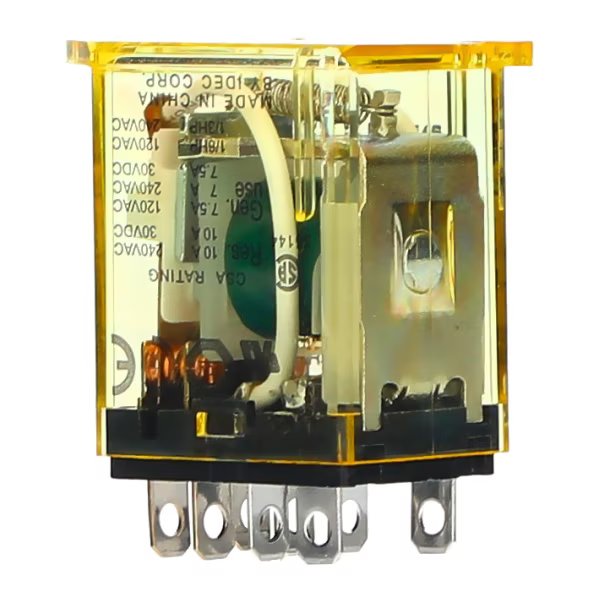

IDEC DPDT WITH-TOP RELA Y RH2B-UTDC48V

Product Code: RH2B-UTDC48V

The IDEC RH2B-UTDC48V is a DPDT with top relay designed for efficient operation in compact spaces. This miniature power relay boasts a large capacity with a 10A contact capability, ensuring robust performance for various applications. Its compact size facilitates space-saving installation, making it an ideal choice for systems where space is at a premium.

Technical Specifications

Contact Resistance (mO) 50
Operating Time 20ms
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Brand IDEC
Terminal Shape Blade Terminal
Coil Voltage DC (V) 48
Contact Material Silver Cadmium Oxide
Contacts DPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 2
Operating Humidity 45 to 85%
Power Consumption (W) 0.9
Weight (g) 37
