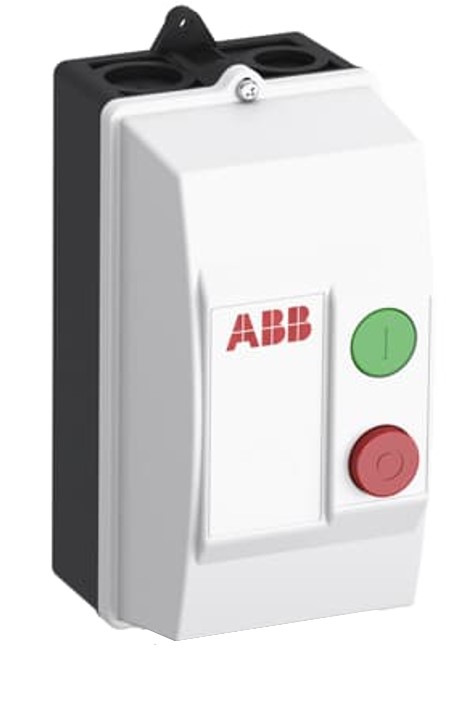

ABB DRAF09-13N ENCLOSED DOL STARTER WITH AF CONTACTOR 4kW, CONTROL 100-250VAC

Product Code: DRAF09-13N

The DOL Motor Starter is a reliable and easy-to-install device designed for motor starting. It features a white housing made of ABS material. With 4 cable entries and a 3-pole AF Contactor, this starter provides efficient connectivity. It has a rated operational power of 4kW at 380/400V AC-3 and a control voltage range of 100-250V (50/60Hz). The starter also includes clear indication lights, with a green "I" indicating ON and a red "0" indicating OFF/RESET.

Technical Specifications

IEC - Rated Operational Power AC-3 220-240V (kW) 2.2
IEC - Rated Operational Power AC-3 380-400V (kW) 4
IEC - Rated Operational Power AC-3 500V (kW) 5.5
Maximum Current ? = 40 °C 400V (A) 9
Brand ABB
Colour White
Dimensions (mm) 107W x 230H x 131D
No. of Poles 3P
Rated Control Supply Voltage AC (V) 100 - 250
