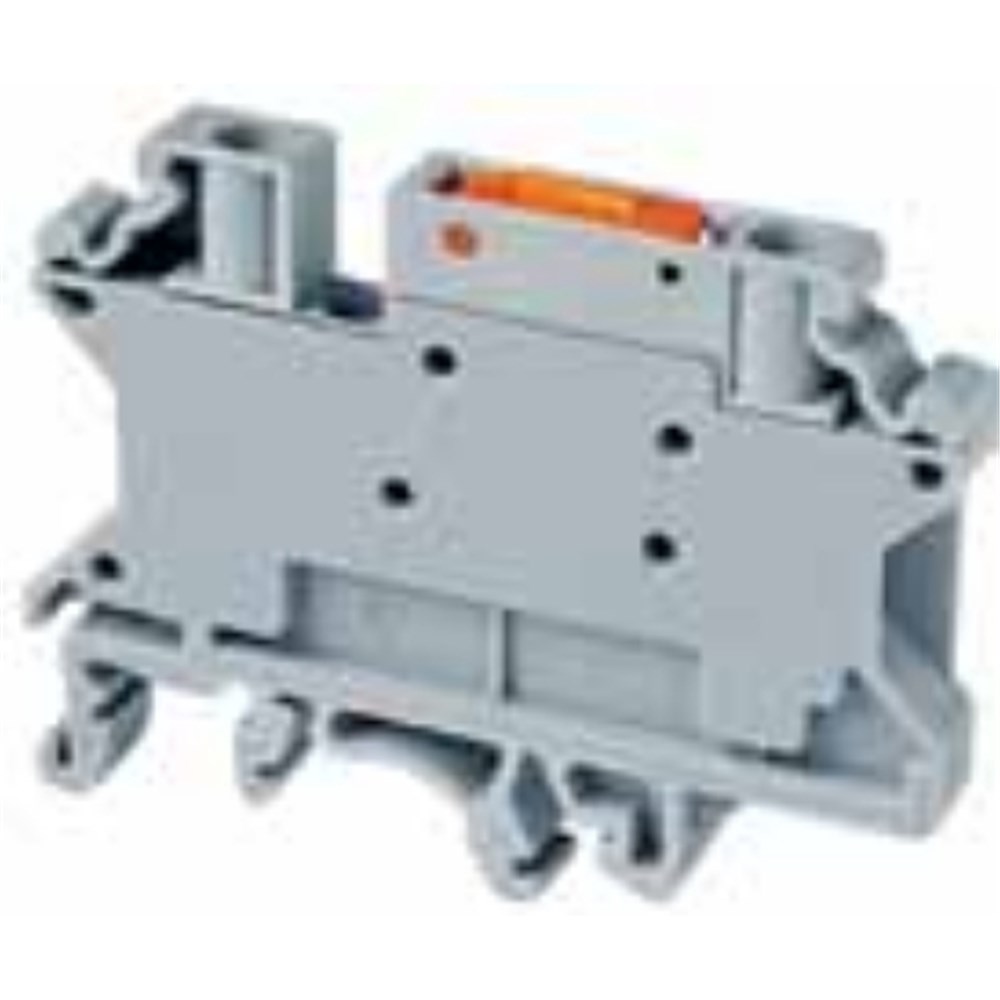

CONNECTWELL CKT4SP DISCONNECT & TEST SCREW CLAMP TERMINAL BLOCK 1 IN/1 OUT 1000V/28A

The Disconnect & test screw clamp terminal block is designed for 1 in / 1 out connections. It is suitable for use with stranded conductors ranging from 0.2mm² to 4.0mm². The terminal block has dimensions of 58.5mm (L) x 6mm (W) x 46mm (H) and comes in a grey colour. It has a maximum voltage rating of 1000V and a current rating of 28A. The terminal block can be mounted on Din 32, Din 35, and Din 35-15 rails.
