Contactors

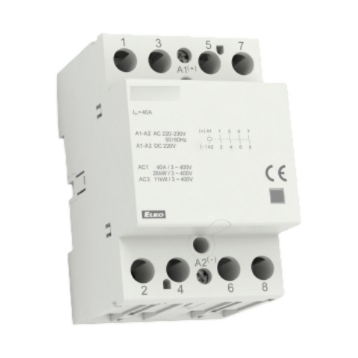

ELKO VS440-04/230V DIN CONTACTOR 4NC, 40A (AC-1), CONTROL 230V AC/DC

Product Code: VS440-04/230V

The Din Contactor is a 4NC contact type with a current rating of 40A (AC1) and a control voltage of 230V AC/DC. It has a width of 3 modules, with each module being 17.5mm wide. The contactor provides IP20 protection and is designed for switching resistive loads and three-phase induction motors. It is well-suited for applications such as heating, lighting, hot water, and storage heating. The contactor can be easily mounted on a DIN Rail.

Technical Specifications

Brand ELKO
Contacts 4NC
Degree of Protection IP20
Dielectrical Strength (kV) 4
Dimensions (mm) 53.3 x 84 x 60
Mounting Type DIN Rail
No. of Modules - Width 17.5 mm 3
No. of Poles 4P
Operational Temperature Range (°C) -5 to +55
Rated Insulation Voltage (V) 440
Rated Operational Current AC-1 (A) 40
Rated Supply Voltage AC/DC (V) 230
Series VS

Documents
