Product Code: VS440-22/230V

The Din Contactor has 2 normally open (NO) contacts and 2 normally closed (NC) contacts. It has a current rating of 40A for AC1 and can be controlled with a voltage of 230V AC/DC. The contactor is 3 modules wide, with each module being 17.5mm in width. It has IP20 protection and is designed for switching resistive loads and three-phase induction motors. It is suitable for applications such as heating, lighting, hot water, and storage heating. The contactor can be mounted on a DIN Rail.

Brand	ELKO
Contacts	2NO + 2NC
Degree of Protection	IP20
Dielectrical Strength (kV)	4
Dimensions (mm)	53.3 x 84 x 60
Mounting Type	DIN Rail
No. of Modules - Width 17.5 mm	3
No. of Poles	4P
Operational Temperature Range (°C)	-5 to +55
Rated Insulation Voltage (V)	440
Rated Operational Current AC-1 (A)	40
Rated Supply Voltage AC/DC (V)	230
Series	VS

Contactors

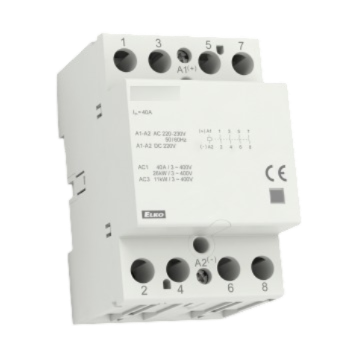

ELKO VS440-22/230V DIN CONTACTOR 2NO+2NC, 40A (AC-1), CONTROL 230V AC/DC

Product Code: VS440-22/230V

Technical Specifications
