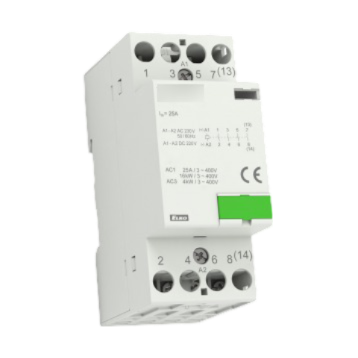

Product Code: VS425-22/230V

The Din Contactor has 2 normally open (NO) contacts and 2 normally closed (NC) contacts. It has a current rating of 25A for AC1 and can be controlled with a voltage of 230V AC/DC. The contactor is 2 modules wide, with each module having a width of 17.5mm. It provides IP20 protection and is designed for switching resistive loads and three-phase induction motors. It is suitable for various applications including heating, lighting, hot water, and storage heating. The contactor can be mounted on a DIN Rail.

Brand	ELKO
Contacts	2NO + 2NC
Degree of Protection	IP20
Dielectrical Strength (kV)	4
Dimensions (mm)	35 x 85 x 60
Mounting Type	DIN Rail
No. of Modules - Width 17.5 mm	2
No. of Poles	4P
Operational Temperature Range (°C)	-5 to +55
Rated Insulation Voltage (V)	440
Rated Operational Current AC-1 (A)	25
Rated Supply Voltage AC/DC (V)	230
Series	VS

Contactors

ELKO VS425-22/230V DIN CONTACTOR 2NO+2NC, 25A (AC-1), CONTROL 230V AC/DC
