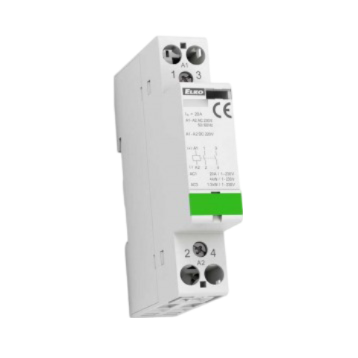

ELKO VS220-20/24V DIN CONTACTOR 2NO, 20A (AC-1), CONTROL 24V AC/DC

Product Code: VS220-20/24V

The Din Contactor is a compact and versatile device designed for switching resistive loads and three-phase induction motors. It has 2 normally open contacts and a current rating of 20A (AC1). The control voltage can be either 24V AC or DC. With a width of just 1 module (17.5mm), it can easily fit into any DIN Rail mount. The contactor offers IP20 protection, making it suitable for various applications including heating, lighting, hot water, and storage heating.

Technical Specifications

Brand ELKO
Contacts 2NO
Degree of Protection IP20
Dielectrical Strength (kV) 4
Dimensions (mm) 17.5 x 85 x 60
Mounting Type DIN Rail
No. of Modules - Width 17.5 mm 1
No. of Poles 2P
Operational Temperature Range (°C) -5 to +55
Rated Insulation Voltage (V) 230
Rated Operational Current AC-1 (A) 20
Rated Supply Voltage AC/DC (V) 24
Series VS
