Product Code: VS220-11/230V

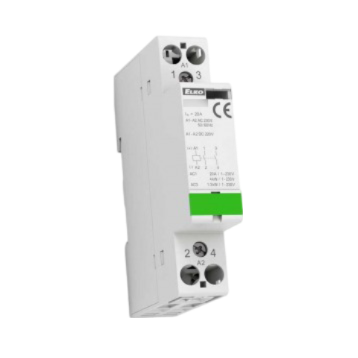

The Din Contactor is a compact and versatile device designed for switching resistive loads and three-phase induction motors. It has 1 normally open (NO) contact and 1 normally closed (NC) contact, allowing for flexible control options. With a current rating of 20A (AC1) and a control voltage of 230V AC/DC, it can handle various applications. The contactor is 1 module wide, which corresponds to a width of 17.5mm. It offers IP20 protection, ensuring safety in indoor environments. The Din Contactor is specifically designed for DIN Rail mounting, making installation quick and easy.

Brand	ELKO
Contacts	1NO + 1NC
Degree of Protection	IP20
Dielectrical Strength (kV)	4
Dimensions (mm)	17.5 x 85 x 60
Mounting Type	DIN Rail
No. of Modules - Width 17.5 mm	1
No. of Poles	2P
Operational Temperature Range (°C)	-5 to +55
Rated Insulation Voltage (V)	230
Rated Operational Current AC-1 (A)	20
Rated Supply Voltage AC/DC (V)	230
Series	VS

Contactors

ELKO VS220-11/230V DIN CONTACTOR 1NO+1NC, 20A (AC-1), CONTROL 230V AC/DC

Product Code: VS220-11/230V
