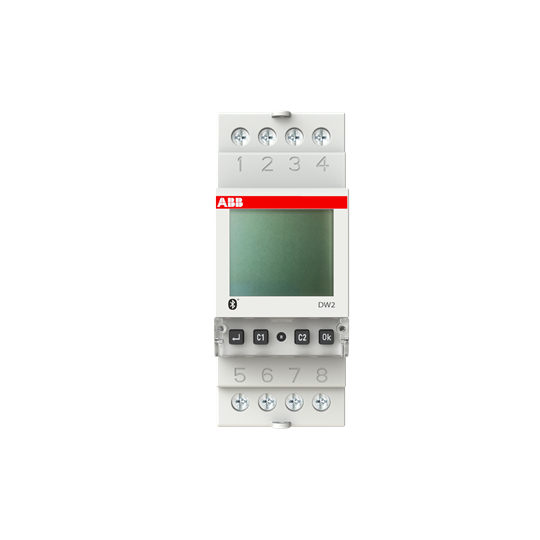

ABB DIGITAL TIME SWITCH 2 CHANNEL WEEKLY 1CO DW2

Product Code: DW2

The Digital Time Switch is a DIN Rail Mount device with 2 channels and Bluetooth connectivity. It features a 3V Lithium backup battery for uninterrupted operation. With weekly functioning and an accuracy of ± 0.5sec/24h, it ensures precise timekeeping. The switch has 2 changeover contacts capable of handling up to 16A at 230VAC. It operates on a universal supply voltage and has a compact design with a width of 17.5mm, occupying 2 modules.

Technical Specifications

Brand ABB
Accuracy ± 0.5sec/24h
Battery Backup 5 years
Channels 2
Contacts 2CO
Degree of Protection IP20
Function Weekly
Minimum Switching Time (s) 60
Mounting Type DIN Rail
No. of Modules - Width 17.5 mm 2
Operational Temperature Range (°C) -20 to +50
Power Consumption (W) 2
Rated Current (A) 16
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Supply Voltage AC/DC (V) 230V AC
Universal Supply Voltage AC (V) 230
