Electrical Time Switches, Timers & Control Relays

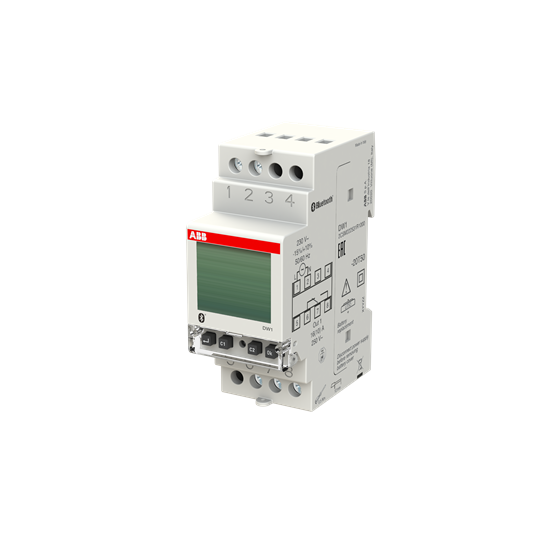

ABB DIGITAL TIME SWITCH 1 CHANNEL WEEKLY 1CO DW1

Product Code: DW1

The Digital Time Switch is a DIN Rail Mount device with 1 channel and Bluetooth connectivity. It features a 3V Lithium backup battery for uninterrupted operation. The switch offers weekly functioning with an accuracy of ± 0.5 seconds per 24 hours. It has 1 changeover contact capable of handling up to 16A at 230VAC. The switch is designed to work with a universal supply voltage and has a compact width of 17.5mm, occupying 2 modules on the DIN rail.

Technical Specifications

Brand ABB
Accuracy ± 0.5sec/24h
Battery Backup 5 years
Channels 1
Contacts 1CO
Degree of Protection IP20
Function Weekly
Minimum Switching Time (s) 60
Mounting Type DIN Rail
No. of Modules - Width 17.5 mm 2
Operational Temperature Range (°C) -20 to +50
Power Consumption (W) 2
Rated Current (A) 16
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Supply Voltage AC/DC (V) 230V AC
Universal Supply Voltage AC (V) 230
