Product Code: MC1C310ATD

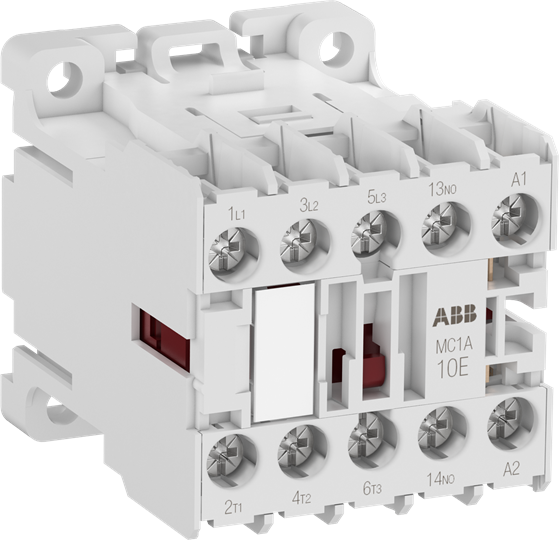

The MC1C310ATD mini contactor is a dimension optimized 3 pole contactor with 1 NO auxiliary contact and screw terminals. This device is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. The product is suitable for wall or rail mounting.

Actuating Voltage Type	DC
Main Circuit Electrical Connection	Screw Connection
No. of Normally-open Auxiliary Contacts	1
Brand	ABB
Auxiliary Contacts	1NO
Degree of Protection	IP20
Dimensions (mm)	45W x 48H x 68D
Mode of Operation	DC
Mounting Type	DIN Rail / Wall
No. of Normally-open Contacts	3
No. of Poles	3
Operating Voltage AC (V)	440
Operational Temperature Range (°C)	-40 to +55
Power Loss (W)	0.7/pole AC-1
Rated Control Circuit Voltage DC (V)	24
Rated Control Supply Voltage AC (V)	24
Rated Control Supply Voltage DC (V)	24
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	750
Rated Operational Current AC-1 400V (A)	20
Rated Operational Power AC-3 400V (kW)	4
Rated Operational Voltage AC (V)	440
Rated Supply Voltage AC (V)	24
Series	M
Terminal Type	Screw

Contactors

ABB MC1C310ATD MINI CONTACTOR 24 V DC - 3 NO - 0 NC - SCREW TERMINALS MC1C310ATD
