Product Code: AF140400013

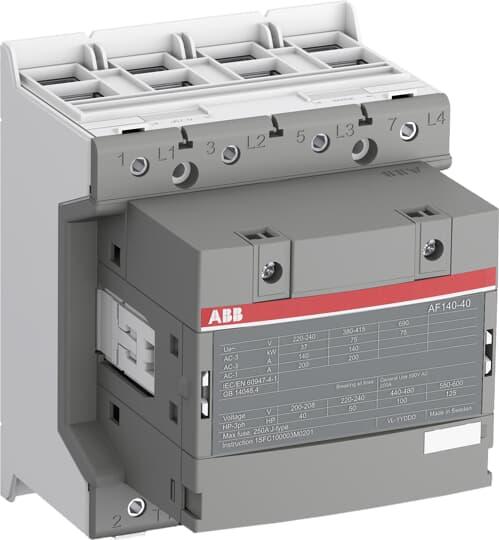

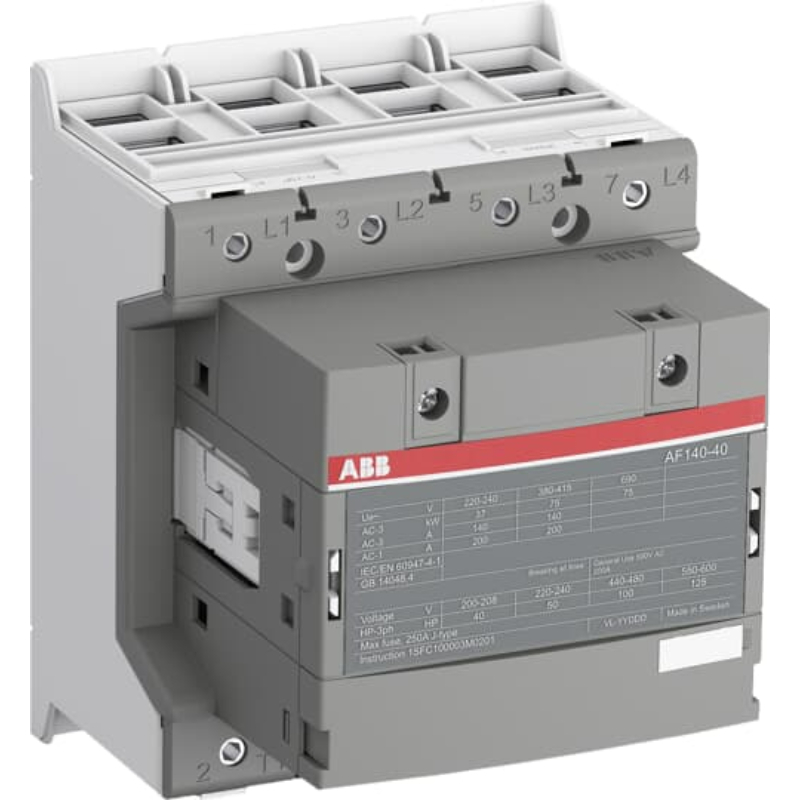

The AF Contactor 4P (4NO) is a versatile and reliable electrical component designed for panel mounting. It has a rated operational current of 200A at 690V (AC1) and 140A at 415V (AC-3), making it suitable for various applications. With a control voltage range of 100-250V AC/DC, this contactor can effectively manage large control voltage variations, ensuring smooth and distinct operations even in unstable networks. Additionally, the AF Contactor can be easily extended with add-on auxiliary contact blocks, providing flexibility for different configurations. It also features built-in surge suppression, reducing energy consumption and protecting connected equipment. In summary, the AF Contactor 4P (4NO) is a high-performance solution that offers reliable operation, easy customization, and enhanced protection in demanding electrical systems.

Brand	ABB
Contacts	4NO (Main Contacts)
Degree of Protection	IP20 (Coil Terminals)
Dimensions (mm)	150H x 128D x 120W
Mounting Type	Panel
No. of Poles	4P
Rated Control Circuit Voltage AC/DC (V)	100 - 250
Rated Frequency (Hz)	50
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	1000
Rated Operational Current AC-1 690V (A)	200
Rated Operational Current AC-3 415V (A)	140
Rated Operational Power AC-3 415V (kW)	75
Rated Operational Voltage AC (V)	690
Short-Circuit Protective Device	250A, fuse type gG
Terminal Type	Double Clamp

Contactors

ABB AF140400013 AF CONTACTOR 4P, 200A (AC-1), 75KW 415VAC CONTROL 100-250VAC/DC
