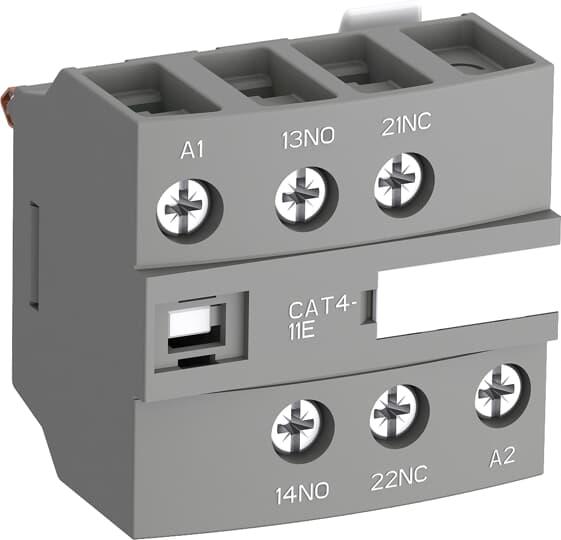

ABB CAT4-11E AUXILIARY CONTACT / COIL TERMINAL BLOCK CAT411E

Product Code: CAT411E

CAT4-11E is a 2-pole side mounted auxiliary contact block with A1 / A2 coil terminal connection on front face, equipped with screw terminals. CAT4-..E version offers terminal assortment matching the marking of 3-pole AF(C)26(Z)(B)..65-30-00, AF(C)40..65-30-11, 4-pole AF(C)09(Z)(B)..52-40-00 or AF(C)09(Z)(B)..52-22-00 contactors. CAT4-11E is available with 1 N.O. and 1 N.C. instantaneous contacts for standard industrial environments.

Technical Specifications

Rated Operational Current AC-15 230V (A) 4
Brand ABB
Auxiliary Contacts 1NO/1NC
Connection Type Screw Connection
Dimensions (mm) 45W x 43H x 31.6D
Model Clip-on
Mounting Type Front Fastening
No. of Normally-closed Contacts 1
No. of Normally-open Contacts 1
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 690
Rated Operational Voltage AC (V) 24 - 690
Suitable For AF26 - AF65
Terminal Type Screw
