Design of Control Element	Push Button
Earth Fault Protection	Yes
Main Circuit Electrical Connection	Connection at Separate Chassis Part
Main Current Circuit Connection Position	Connection at Separate Chassis Part
No. of Auxiliary Change-over Contacts	4
Overload Release Current Setting (A)	1600
Rated Instantaneous Short-Circuit Current - Ii (A)	6000
Brand	ABB
AC Voltage (V)	690
Breaking Capacity (kA)	100 @415V AC
Breaking Capacity 400V AC - Icu (kA)	100
Breaking Capacity 415V AC - Icu (kA)	100
Component Type	Withdrawable
Current Rating (A)	4000
Degree of Protection	IP30
EAN	8015644764135
Frame	E4.2
G (0.1 to 1 x In) - I4 (A)	400 - 4000
I (1.5 to 15 x In) - I3 (A)	6000 - 60000
Icw (kA/1s) - Short-time Withstand Current Rating	85
Indication	Switched-off Indicator
Iu - Uninterrupted Current Rating (A)	4000
L (0.4 to 1 x In) - I1 (A)	1600 - 4000
No. of Poles	3
Poles	3P
Power Loss (W)	900
Rated Current (A)	4000
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	85
Rated Uninterrupted Current - Iu (A)	4000
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	2400 - 40000
Size of Frame	E4.2
Standards and Approvals	IEC
Trip Unit	Ekip DIP LSIG
Trip Unit - Electronic	Ekip DIP LSIG
Version	Withdrawable

Air Circuit Breakers

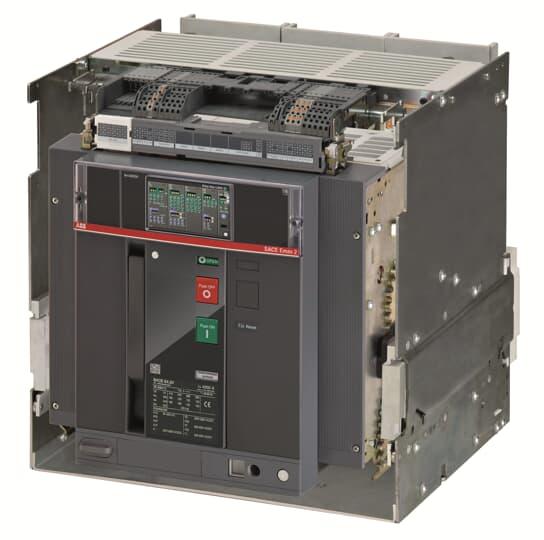

ABB E4.2H 4000 EKIP DIP LSIG 3P WMP 1SDA072563R1
