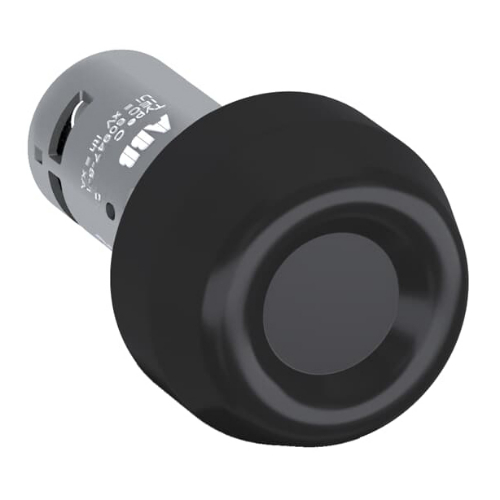

ABB CP6-10B-11 HEAVY DUTY PUSHBUTTON BLACK SILICONE RUBBER CAP 1NO+1NC COMPACT

Product Code: CP6-10B-11

The Heavy Duty Pushbutton is a compact range product with a black silicone rubber cap. It features 1 normally open (NO) contact and 1 normally closed (NC) contact. This pushbutton is designed to withstand heavy-duty use.

Technical Specifications

Brand ABB
Colour Black
Contacts 1NO+1NC
Degree of Protection IP66 (Front), IP20 (Terminals)
Dimensions (mm) 37W X 37H X 61D
Illumination Non-Illuminated
Maximum Operational Voltage AC (V) 300
Maximum Operational Voltage DC (V) 300
Mode of Operation Momentary
Operational Temperature Range (°C) -25 to +70
Rated Frequency (Hz) 50/60
Rated Operational Current 125V DC (A) 0.2
Rated Operational Current 240V AC (A) 1
Rated Operational Current 24V DC (A) 0.3
Terminal Type Screw Terminals
Tightening Torque (Nm) 0.8
