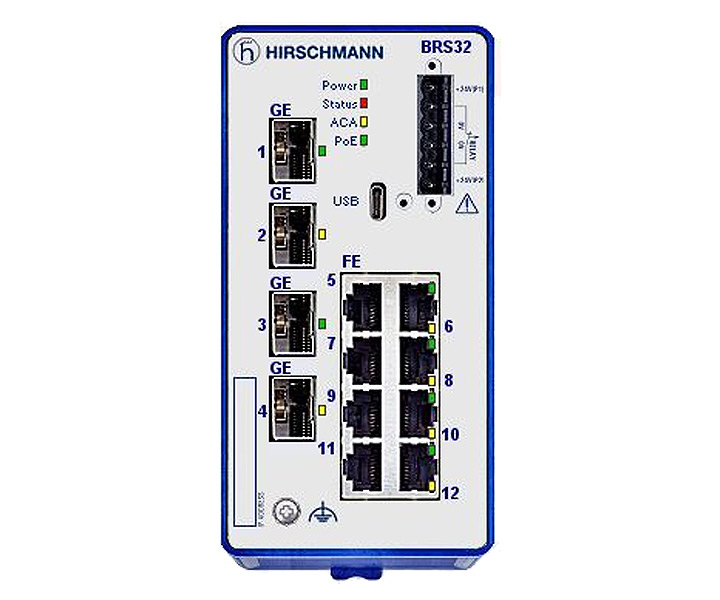

HIRSCHMANN MANAGED INDUSTRIAL SWITCH FOR DIN RAIL 4X GIG SFP, 8X FAST ETHERNET TX, 48/54 V DC, 0 - +60°C, HIOS L2S, POE+ 942170048

Product Code: 942 170-048

Hirschmann's network switch is designed for robust performance, featuring 4 Gig SFP and 8 FE TX ports. It operates on a 48/54 V DC power supply and is engineered to withstand temperatures ranging from 0 to +60 degrees Celsius. Equipped with HiOS L2S software, it also supports PoE+ for efficient power distribution over Ethernet.

Technical Specifications

Electromagnetic Capability 10 V/m (80-2000 MHz) 5 V/m (2000-2700 MHz) 3 V/m (5100-6000 MHz)
Electrostatic Discharge (kV) 6 kV Contact Discharge, 8 kV Air Discharge
Port Quantity and Type 8 x FE + 4 x GE, 2 x SFP Slot (Uplink 1), 2 x SFP Slot (Uplink 2)
Relative Humidity 1- 95 %
Resistance to Vibrations 5 Hz ... 8,4 Hz with 3,5 mm amplitude 2 Hz ... 13,2 Hz with 1 mm amplitude 8,4 Hz ... 200 Hz with 1 g 13,2 Hz ... 100 Hz with 0,7 g
Transition Type 2 kV Power Line, 2 kV Data Line
Brand HIRSCHMANN
Cable Length (m) 0 - 100
Degree of Protection IP30 (Housing)
Mounting Type DIN Rail
Operational Temperature Range (°C) 0 to +60
Rated Operational Voltage DC (V) 2 x (48 (PoE) / 54 (PoE+))
Reference No. BRS32-0804OOOO-SPCY99HHSESXX.X
Series BOBCAT
Standards and Approvals CE, FCC, EN61131, EN62368-1, cUL61010
Surge Voltage (kV) Power Line: 2 kV (Line/Earth) and 1 kV (Line/Line); Data Line: 2 kV
