Diaphragm Material	Ceramics Al2O3 96 %
Electrical Connection	PVC-cable (grey, Ø 7.4 mm) [Shielded cable with integrated ventilation tube for atmospheric pressure reference].
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Permissible Temperatures	Medium/ Electronics/ Environment/ Storage: -25 ... 125 °C
Pressure (mH2O)	0.6
Product Series	LMK 382
Response Time (ms)	Mean response time: ≤ 200 Max. response time: 380
Seals	FKM
Brand	BD SENSORS
Application	Preferred areas of use are: Drinking water abstraction. Waste water treatment. Water recycling. Level monitoring in open tanks with low filling heights. Fuel storage. Tank farms / biogas plants.
Housing Material	Stainless steel 1.4404 (316L)
Version	Standard

Level Sensors

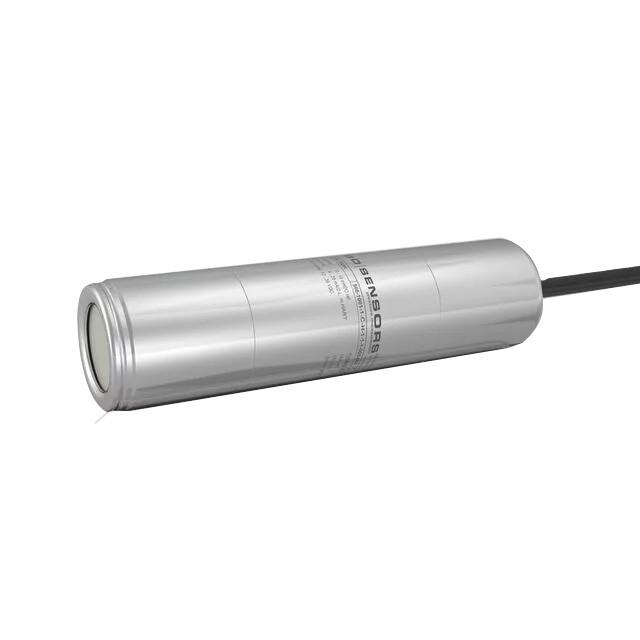

BD SENSORS LMK382H STAINLESS S TEEL PROBE WITH HART COMM'S LMK382H STAINLESS STEEL PROBE 566060012H11B004000
