Diaphragm Material	Stainless steel 1.4435 (316L)
Electrical Connection	Male plug M12x1 (4-pin) / metal
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Filling Fluid Type	Silicone oil
Input Pressure (bar)	2.5
Mechanical Stability	Vibration: 5 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 100 g / 1 msec according to DIN EN 60068-2-27.
Operational Life	100 million load cycles
Output Signal	4 … 20 mA / 2-wire
Permissible Temperatures	Medium: -25 ... 85 °C Electronics / Environment: -25 ... 85 °C Storage: -25 ... 85 °C °C
Pressure Port	Stainless steel 1.4401 (316 SS)
Process Connection	1/4" - 18 NPT F / fixing 7/16 UNF
Product Series	DPT 100
Response Time (ms)	10
Seals	PTFE
Valve	Without
Brand	BD SENSORS
Accuracy	pN ≥ 60 mbar: 0.1 % FSO
Application	Machine and plant engineering. Environmental technology. Energy production.
Housing Material	Aluminium
Version	Standard

Pressure Sensors

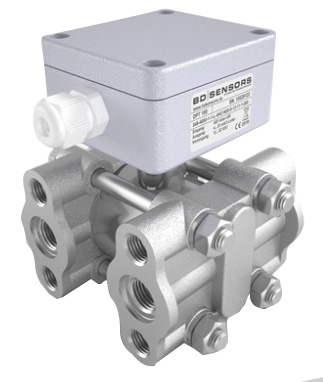

BD SENSORS DPT100 DIFFERENTIAL PRESSURE TRANSMITTER DPT100 DIFFERENTIAL PRESSURE T 345250111LM17N20012114000
