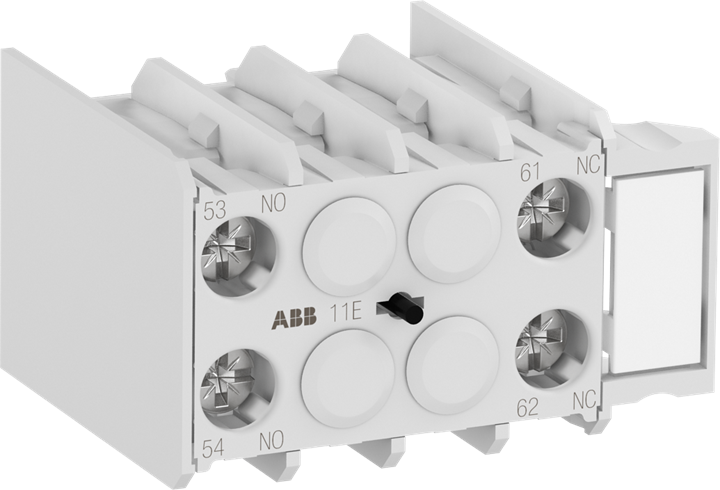

ABB MACN211AT AUXILIARY CONTACT BLOCK MACN211AT

Product Code: MACN211AT

The MACN211AT is an auxiliary contact for front mounting with 1NO/1NC contacts and screw terminals. Auxiliary contacts are used for the operation of auxiliary circuits and control circuits. The auxiliary contact meets the requirements of EN 50012.

Technical Specifications

Rated Operational Current AC-15 230V (A) 6
Brand ABB
Auxiliary Contacts 1NO/1NC
Connection Type Screw Connection
Degree of Protection IP20
Dimensions (mm) 45W x 27H x 35D
Model Clip-on
Mounting Type Front Fastening
No. of Normally-closed Contacts 1
No. of Normally-open Contacts 1
No. of Poles 2
Operational Temperature Range (°C) -40 to +55
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 750
Rated Operational Voltage AC (V) 690
Series M
Suitable For MC1, MC2 equipped with Screw terminals
Terminal Type Screw
