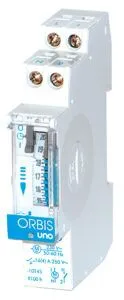

ORBIS ANALOG TIME SWITCH W/2HRS 1NO 16A UNO-QRS-230VAC

Product Code: UNO-QRS-230VAC

Analog Time Switch with Simple Programming, Manual Override, Backlit Display, Operating Schedule and Relay Status Display. Provides 100 hours of Battery Backup. Supports Australian Daylight Savings Time. Features a 2-hour Program and can handle 16A/250V AC switching.

Technical Specifications

Brand ORBIS
Battery Backup 150 hrs
Contacts 1NO
Degree of Protection IP20
Function Weekly
Maximum Switching Current (A) 16
Maximum Switching Voltage AC (V) 250
Minimum Switching Time (s) 7200
Mounting Type DIN Rail
No. of Modules 1
No. of Switching Intervals 84 pins
Nominal Frequency (Hz) 50/60
Operational Temperature Range (°C) -10 to +45
Pollution Degree 2
Power Consumption (W) 0.5
Rated Current (A) 16
Rated Impulse Withstand Voltage (kV) 2.5
Rated Supply Voltage AC/DC (V) 230V AC
Standards and Approvals EN 60529
Terminal Type Screw
Universal Supply Voltage AC (V) 230
