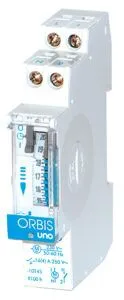

ORBIS ANALOG TIME SWITCH DAILY/15MIN 1NO 16A UNO-D-230VAC

Product Code: UNO-D-230VAC

Analog Time Switch with Simple Programming and Manual Override. Backlit Display shows Operating Schedule and Relay Status. Supports Australian Daylight Savings Time. Choose between 24-hour or 7-day Program. Can handle 16A/250V AC switching.

Technical Specifications

Brand ORBIS
Battery Backup No
Contacts 1NO
Degree of Protection IP20
Function Daily
Maximum Switching Current (A) 16
Maximum Switching Voltage AC (V) 250
Minimum Switching Time (s) 900
Mounting Type DIN Rail
No. of Modules 1
No. of Switching Intervals 96 pins
Nominal Frequency (Hz) 50/60
Operational Temperature Range (°C) -10 to +45
Pollution Degree 2
Power Consumption (W) 0.5
Rated Current (A) 16
Rated Impulse Withstand Voltage (kV) 2.5
Rated Supply Voltage AC/DC (V) 230V AC
Standards and Approvals EN 60529
Terminal Type Screw
Universal Supply Voltage AC (V) 230
