Product Code: UNO-QRD-230VAC

Analog Time Switch: Simple Programming, Manual Override, Backlit Display This analog time switch offers easy programming and a manual override feature. The backlit display allows for clear visibility of the operating schedule and relay status. It also comes with a battery backup that lasts up to 100 hours. Designed for Australian daylight savings time, it supports both 24-hour and 7-day programs. With 16A/250V AC switching capability, it is suitable for various applications.

Brand	ORBIS
Battery Backup	150 hrs
Contacts	1NO
Degree of Protection	IP20
Function	Daily
Maximum Switching Current (A)	16
Maximum Switching Voltage AC (V)	250
Minimum Switching Time (s)	900
Mounting Type	DIN Rail
No. of Modules	1
No. of Switching Intervals	96 pins
Nominal Frequency (Hz)	50/60
Operational Temperature Range (°C)	-10 to +45
Pollution Degree	2
Power Consumption (W)	0.5
Rated Current (A)	16
Rated Impulse Withstand Voltage (kV)	2.5
Rated Supply Voltage AC/DC (V)	230V AC
Terminal Type	Screw
Universal Supply Voltage AC (V)	230

Electrical Time Switches, Timers & Control Relays

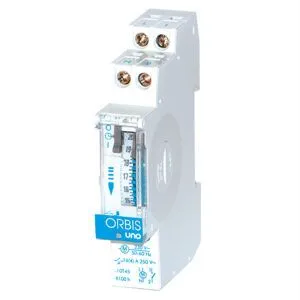

ORBIS ANALOG TIME SWITCH D/15MIN 1NO 16A UNO-QRD-230VAC
