Aluminium Terminal Blocks

ABB ATB1501N ALUMINIUM TERMINAL BLOCK NEUTRAL 2 CONNECTIONS CABLE 150mm²

Product Code: ATB1501N

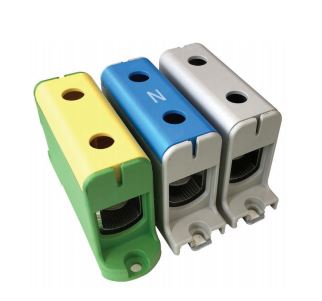

Aluminium terminal block with 2 neutral connections. Can accommodate cable size up to 150mm² and comes in a blue colour. Nominal current ratings are 320A for copper and 290A for aluminium. Suitable for use with both copper and aluminium cables. Tin plating prevents galvanic reactions. Features an internal barrier that allows connection of both aluminium and copper cables to a single block. Screw head size is 8mm, designed for panel mounting.

Technical Specifications

Brand ABB
Colour Blue
Maximum Cable Cross Section (mm²) 150
No. of Connections 2
Nominal Current (A) 320 (Cu)/290 (AL)
Nominal Insulation Voltage (V) 600
Screw Head Size (mm) 8
Tightening Torque (Nm) 14 (35-95mm²)/24 (120-150mm²)
