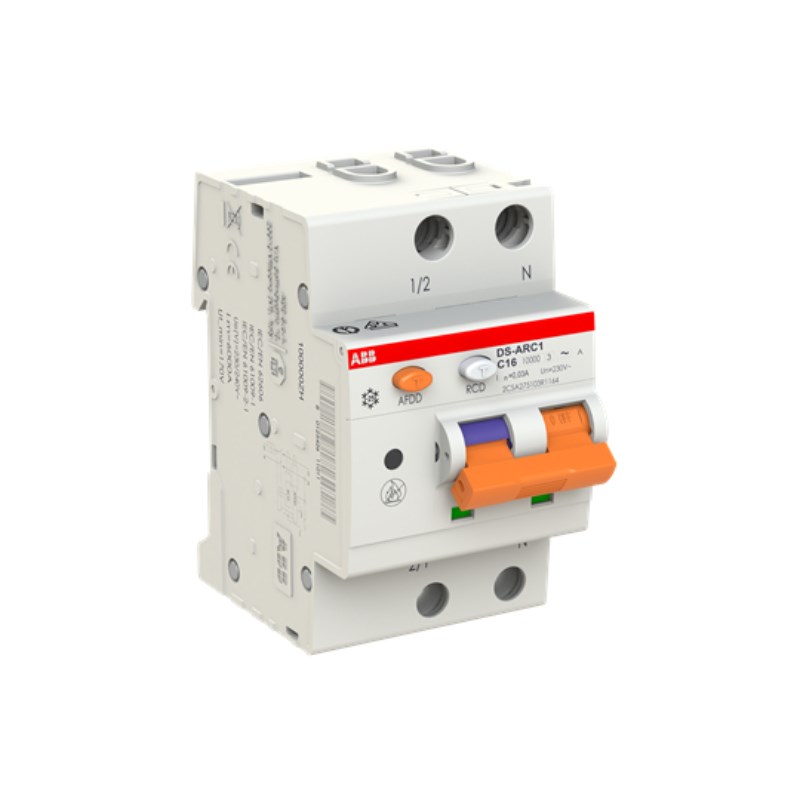

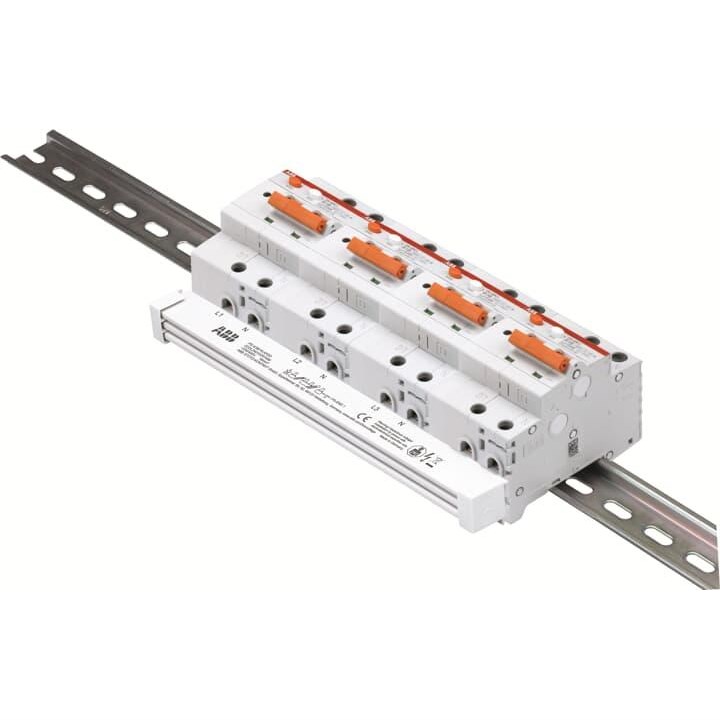

ABB DS-ARC1MC16A30 AFDD WITH RCBO 10kA 1P+N 16A C TYP A 30mA
Zoom
Zoom
Zoom
ABB DS-ARC1MC16A30 AFDD WITH RCBO 10kA 1P+N 16A C TYP A 30mA
Product Code: DS-ARC1MC16A30
The ABB Arc Fault Detection Device (AFDD) is a comprehensive solution for protecting against arc faults, overvoltages, overcurrent, and earth fault currents. With its integrated RCBO, it offers complete protection in a compact package. It has a high breaking capacity of 10kA and operates at 230VAC. The device is designed for single-phase and neutral connections (1P+N) with a current rating of 16A. It features a C Curve Type A trip characteristic with a sensitivity of 30mA. Trust ABB for reliable and efficient protection against electrical faults.
Technical Specifications
Brand
ABB
Impulse Withstand Voltage (kV/1.2µS)
4
AC Voltage (V)
230/240
Application
Commercial and Industrial
Breaking Capacity (kA)
10 @230 V AC
Breaking Capacity 230V AC - Icu (kA)
10
Cable Cross Section (mm²)
25
Current Rating (A)
16
Curve Type
C Curve
Degree of Protection
IP40 (Housing), IP20 (Terminals)
Dimensions (mm)
85H x 69D x 52.5W
Family
DS-ARC1M
Housing Material
Insulation group I, RAL 7035
Icn-Rated Short Circuit Capacity (kA)
10
Inc-Rated Conditional Short Circuit Capacity (kA)
10
Mounting Type
DIN Rail
No. of Poles
1P+N
Poles
1P+N
Pollution Degree
2
Power Loss (W)
3.1
Rated Conditional Short-Circuit Current - Inc (kA)
10
Rated Current (A)
16
Rated Frequency (Hz)
50/60
Rated Impulse Withstand Voltage (kV)
4
Rated Insulation Voltage (V)
500
Rated Operational Voltage AC (V)
230/240
Rated Residual Current (mA)
30
Rated Short-Circuit Capacity - Icn (kA)
10
Rated Voltage AC (V)
230
Residual Current Type
A
Series
DS-ARC1M
Standards and Approvals
IEC/EN 62020
Trip Curve
C Curve
Type of Residual Current
A
Documents
Datasheet
IPD Product Catalogue V17
Products to compare:
Compare Selected
Remove All
Print
Comparing
Products
