Product Code: 3AUA0000083608

ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.

Contains	Control Element PC Connection
Maximum Output Frequency (Hz)	500
Maximum Output Voltage AC (V)	480
No. of Analogue Inputs	2
No. of Analogue Outputs	2
No. of Digital Inputs	6
No. of Digital Outputs	3
Nominal Output Current (A)	293
Number of Other HW Interfaces	2
Number of Parallel Interfaces	2
Number of RS-485 Interfaces	1
Number of USB Interfaces	1
Output Power - Normal Duty (kW)	160
Relative Symmetric Net Frequency Tolerance	5%
Relative Symmetric Net Voltage Tolerance	10%
Brand	ABB
Communication Protocols	TCP/IP PROFIBUS CAN MODBUS DeviceNet / DeviceNet Safety LON PROFINET IO EtherNet/IP BACnet Other Bus Systems
Application	Industrial, Commercial & Domestic
Dimensions (mm)	300W x 965H x 393D
EAN	6438177306399
Input Voltage AC (V)	380 - 480

Variable Speed Drives

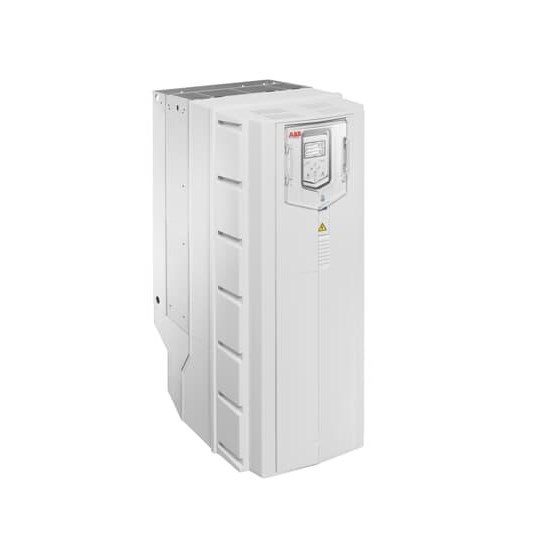

ABB ACH580 160KW 293A IP55 HVAC DRIVE W/ CP ACH580-01-293A-4+B056+J400
