Brand	ABB
AC Voltage (V)	690
Current Rating (A)	6300
Frame	E6.2
Icw (kA/1s) - Short-time Withstand Current Rating	100
Iu - Uninterrupted Current Rating (A)	6300
No. of Poles	4P
Poles	4P
Power Loss (W)	1550
Rated Current (A)	6300
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	100
Rated Uninterrupted Current - Iu (A)	6300
Size of Frame	E6.2
Standards and Approvals	IEC
Terminal Type	Rear (HR - HR)

Air Circuit Breakers

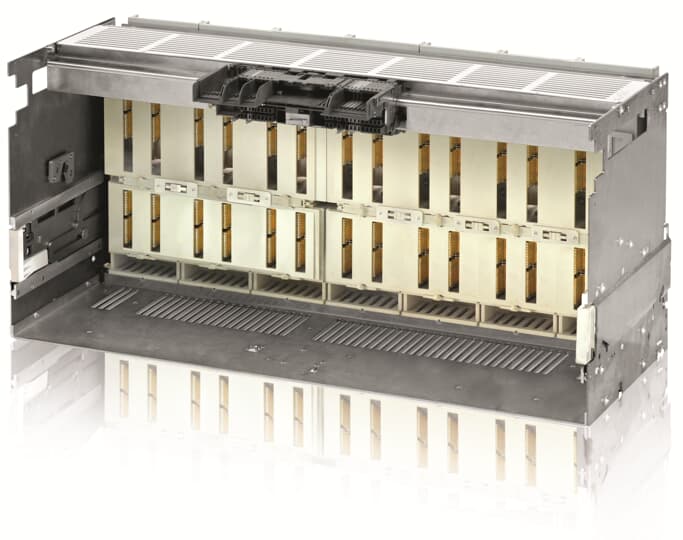

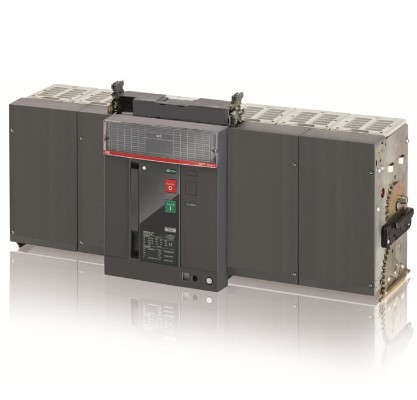

ABB ACB E6.2H 6300 4P 100KA WITHDRAWABLE NON-AUTO WITH FIXED PART E62H4NA63W/F
